MKT240-400V, Standard, Series MKT - Dynamic climat

Varenr. BIN90200386

Benefits

  • Homogeneous climate conditions thanks to APT.line technology.
  • Comprehensive programming and data acquisition.
  • Large heated viewing window.
Beskrivelse

Temperature ranges between -70 °C and 180 °C, with the added benefit of natural simulation, are what make the BINDER MKT series so unique. At the same time, this environmental simulation chamber fulfills the very highest precision and performance requirements for cyclical temperature tests.

Benefits

  • Homogeneous climate conditions thanks to APT.line technology
  • Comprehensive programming and data acquisition
  • Large heated viewing window

Important characteristics

  • Temperature range: -70 °C to 180 °C
  • 4 zero-voltage relay contacts
  • APT.line preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COM Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Access port with silicone plug (Models 115, 240: 50 mm, left)
  • 2 access ports with silicone plugs (Model 720: 80 mm, left and right)
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • 230 V power socket on the right-side control panel
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • Door heating
  • 1 stainless steel rack
  • Inner chamber made of stainless steel
  • CFC-free refrigerants R-452A and R-23
  • Cooling with cascade compressor cooling unit

Environmental simulation chambers for rapid temperature changes with extended low-temperature range

BINDER environmental simulation chambers in the MKT series are designed for rapid temperature changes and also feature an extended low-temperature range, with chambers operating between -70 °C and 180 °C, and thereby proving suitable for a great many different tasks. The high levels of precision and performance delivered by these environmental simulation chambers are put to good use during cyclical temperature tests.
The dynamic climate chambers in the MKT series come with the proven APT.line preheating chamber technology, which ensures precise temperature values across the entire working area, even when chambers are fully loaded. They also feature a built-in powerful cooling unit with fast cooling down rates. Condensation protection can be programmed for samples, while four zero-voltage relay contacts can also be activated via the MCS controller. The environmental simulation chambers have a heated viewing window with LED interior lighting to ensure good visibility. Overall, the climate chambers offer an extensive range of programming options that allow them to be used extremely flexibly in line with the specific requirements in question.

BINDER environmental simulation chambers for innovation and precision

The innovative technology of BINDER's environmental simulation chambers is contained within premium housing insulation, which keeps the temperature of the housing consistently low and reduces noise levels during operation. The chamber interior, preheating chamber, and inner sides of the door are made from stainless steel, making them robust, durable, and easy to clean. A troubleshooting system with visual and acoustic alarms is also on hand to take care of safety.
The dynamic climate chambers in the MKT series from BINDER combine innovative technology with ease of handling, and maximum precision and safety. The environmental simulation chambers meet the high standards for industrial material testing as well as aging and stress tests, far exceeding the possibilities offered by standard heating chambers and proving ideal for a wide range of tasks. The climate chambers are available in different versions with interior volumes offering varying capacities.

Performance Data Temperature

DesignationMKT240-400VMKT240-480V-C
Temperature range-70...180 °C-70...180 °C
Temperature uniformity dependent on set value0.1...1 ± K0.1...1 ± K
Temperature fluctuation dependent on set value0.1...0.4 ± K0.1...0.4 ± K

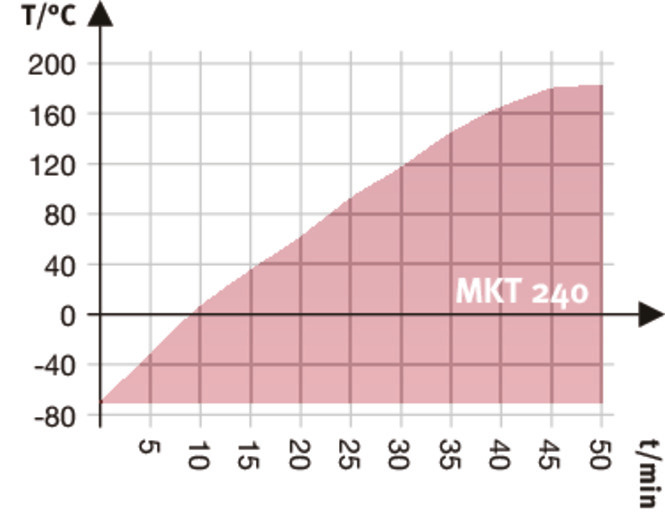

Average heating-up rate according to IEC 60068-3-55 K/min5 K/min

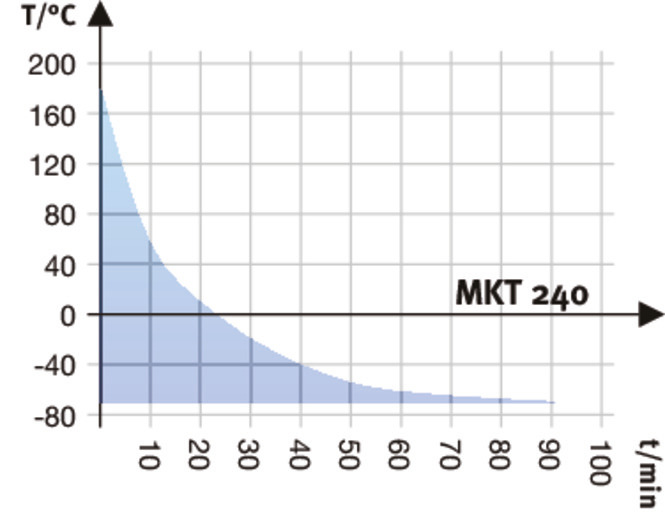

Cooling down time from 180°C to -70°C95 min95 min
Average cooling down time according to IEC 60068-3-54.2 K/min4.2 K/min

Electrical data

DesignationMKT240-400VMKT240-480V-C
Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power6,5 kW6,5 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationMKT240-400VMKT240-480V-C
Interior volume228 L228 L
Net weight of the unit (empty)380 kg380 kg
Load per rack30 kg30 kg
Permitted load70 kg70 kg
Wall clearance back300 mm300 mm
Wall clearance sidewise200 mm200 mm

Housing dimensions not incl. fittings and connections

DesignationMKT240-400VMKT240-480V-C
Width net1,115 mm1,115 mm
Height net1,935 mm1,935 mm
Depth net925 mm925 mm

Internal Dimensions

DesignationMKT240-400VMKT240-480V-C
Interior width735 mm735 mm
Interior height700 mm700 mm
Interior depth443 mm443 mm
Viewing window width508 mm508 mm
Viewing window height300 mm300 mm
Unit doors11

Environment-specific data

DesignationMKT240-400VMKT240-480V-C
Sound-pressure level64 dB(A)67 dB(A)
Energy consumption at 20°C500 Wh/h500 Wh/h

Fixtures

DesignationMKT240-400VMKT240-480V-C
Number of shelves (std./max.)1/61/6
Specifikationer
Varenr. BIN90200386
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0386
CE-godkendt Ja
