Binder UFV500 ULT fryser, 477 liter

Varenr. BIN90200347

Benefits

  • Lowest energy consumption in its class.
  • Environmentally-friendly refrigerants R-290 and R-170.
  • Thermal insulation with unique long-life VIPs (vacuum insulation panels).
  • Rust-proof interior made completely of stainless steel.
Beskrivelse

The BINDER ultra low temperature freezer ensures the safe storage of samples at -90 °C. It combines outstanding environmental friendliness with low energy consumption, convenient operation and an individual safety concept.

Benefits

  • Lowest energy consumption in its class
  • Environmentally-friendly refrigerants R-290 and R-170
  • Thermal insulation with unique long-life VIPs (vacuum insulation panels)
  • Rust-proof interior made completely of stainless steel

Important characteristics

  • Temperature range: -90 °C to -40 °C
  • Lowest energy consumption in its class
  • Powerful cascade compressor cooling unit
  • Environmentally friendly refrigerants R-290 and R-170
  • Thermal insulation with unique long-life VIPs (vacuum insulation panels)
  • Innovative door gasket concept reduces buildup of ice
  • Ergonomic door handle
  • Rust-proof interior made completely of stainless steel

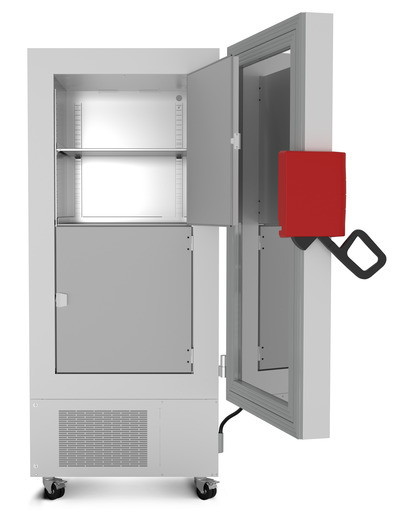

  • Detachable inner doors made of stainless steel
  • 3 stainless-steel shelves providing flexible placement
  • Water cooling (depending on version)
  • Zero-voltage alarm contact for in-house alarm system
  • Internal data logger, measured values can be read out in open format via USB
  • Ethernet interface
  • 2 access ports, Ø 28 mm, rear

Performance Data Temperature

DesignationUFV500-230VUFV500-230V-WUFV500UL-240VUFV500UL-120V
Temperature range-90...-40 °C-90...-40 °C-90...-40 °C-90...-40 °C
Temperature uniformity at -80°C2.5 ± K2.5 ± K2.5 ± K2.5 ± K
Temperature fluctuation at -80°C1.5 ± K1.5 ± K1.5 ± K1.5 ± K

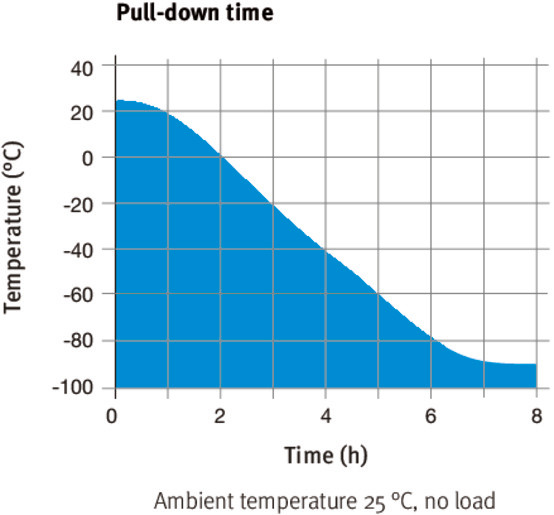

Cooling down time from 22°C to -80°C360 min360 min360 min360 min

Electrical data

DesignationUFV500-230VUFV500-230V-WUFV500UL-240VUFV500UL-120V
Rated Voltage230 V230 V208...230 V115 V
Power frequency50 Hz50 Hz60 Hz60 Hz
Nominal power1,6 kW1,6 kW1,8 kW1,4 kW
Unit fuse10,0 A10,0 A10,0 A15,0 A
Phase (Nominal voltage)1~1~2~1~

Measures

DesignationUFV500-230VUFV500-230V-WUFV500UL-240VUFV500UL-120V
Interior volume477 L477 L477 L477 L
Net weight of the unit (empty)247 kg247 kg247 kg247 kg
Permitted load200 kg200 kg200 kg200 kg
Permitted load of individual compartment50 kg50 kg50 kg50 kg
Wall clearance back100 mm100 mm100 mm100 mm
Wall clearance sidewise250 mm250 mm250 mm250 mm

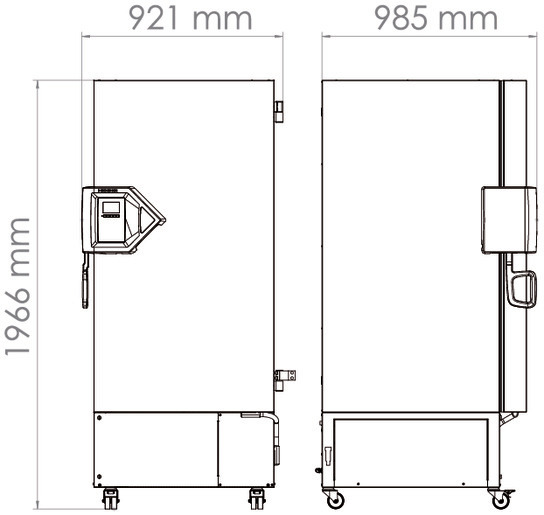

Housing dimensions not incl. fittings and connections

DesignationUFV500-230VUFV500-230V-WUFV500UL-240VUFV500UL-120V
Width net826 mm826 mm826 mm826 mm
Height net1,966 mm1,966 mm1,966 mm1,966 mm
Depth net938 mm938 mm938 mm938 mm

Internal Dimensions

DesignationUFV500-230VUFV500-230V-WUFV500UL-240VUFV500UL-120V
Interior width606 mm606 mm606 mm606 mm
Interior height1,300 mm1,300 mm1,300 mm1,300 mm
Interior depth605 mm605 mm605 mm605 mm
Inner doors2222
Unit doors1111

Environment-specific data

DesignationUFV500-230VUFV500-230V-WUFV500UL-240VUFV500UL-120V
Sound-pressure level47 dB(A)47 dB(A)47 dB(A)47 dB(A)
Energieverbrauch bei Sollwert -80 °C und T = 20 °C7.9 kWh/d7.9 kWh/d7.9 kWh/d7.9 kWh/d

Fixtures

DesignationUFV500-230VUFV500-230V-WUFV500UL-240VUFV500UL-120V
Number of shelves (std./max.)3/113/113/113/11

Load-variants

DesignationUFV500-230VUFV500-230V-WUFV500UL-240VUFV500UL-120V
Freezer racks per compartment4444
Cryoboxes, 50 mm352352352352
Specifikationer
Varenr. BIN90200347
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0347
CE-godkendt Ja
