Binder KBF-S ECO 240 Klimakammer, std., 247 liter

Varenr. BIN90200416

Benefits

  • Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
  • Reliable thanks to failsafe operation without compromise.
  • Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
  • Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
Beskrivelse

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KBF-S ECO climatic chamber is one of the most energy-efficient constant climate chambers on the market. The thermoelectric cooling technology means the KBF-S ECO series is also very quiet during operation.

Benefits

  • Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
  • Reliable thanks to failsafe operation without compromise.
  • Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
  • Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.

Important characteristics

  • Temperature range: 0 °C to +70 °C (max. 28 °C under ambient temperature)
  • Humidity range: 10% to 80% RH
  • APT.line preheating chamber technology
  • Independent water supply via tank
  • LCD to display temperature and humidity along with additional information and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Inner chamber made completely of stainless steel
  • 2 stainless steel racks, including shelf carrier
  • Access port with silicone plug Ø 30 mm, left
  • Computer interface: Ethernet

Performance Data Temperature

DesignationKBFSECO240-230VKBFSECO240UL-120V
Temperature range(max. 28 °C under ambient temperature) 0...70 °C(max. 28 °C under ambient temperature) 0...70 °C
Max. heat compensation at 40°C250 W250 W

Performance Data Climate

DesignationKBFSECO240-230VKBFSECO240UL-120V
Temperature range with humidity(max. 28 °C under ambient temperature) 5...70 °C(max. 28 °C under ambient temperature) 5...70 °C
Humidity range10...80 % RH10...80 % RH
Temperature uniformity at 25°C and 60% RH0.1 ± K0.1 ± K
Temperature uniformity at 40°C and 75% RH0.2 ± K0.2 ± K
Temperature fluctuation at 25°C and 60% RH0.1 ± K0.1 ± K
Temperature fluctuation at 40°C and 75% RH0.1 ± K0.1 ± K
Recovery time after door was opened for 30 s at 25°C and 60% RH5 min5 min
Recovery time after door was opened for 30 s at 40°C and 75% RH11 min11 min

Electrical data

DesignationKBFSECO240-230VKBFSECO240UL-120V
Rated Voltage200...230 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power0,8 kW0,8 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationKBFSECO240-230VKBFSECO240UL-120V
Interior volume247 L247 L
Net weight of the unit (empty)146 kg146 kg
Load per rack30 kg30 kg
Permitted load100 kg100 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise180 mm180 mm

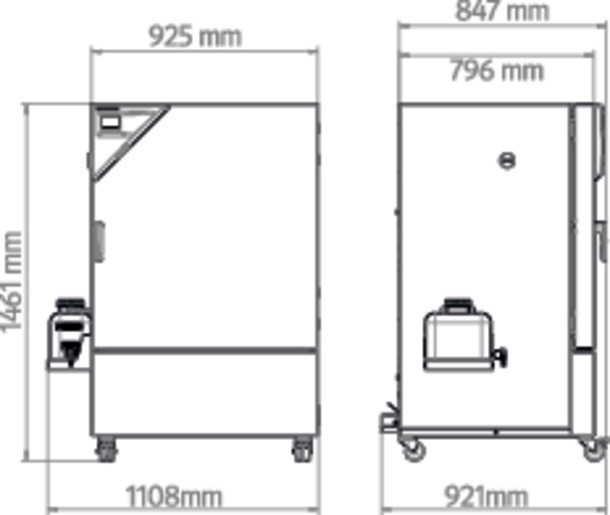

Housing dimensions not incl. fittings and connections

DesignationKBFSECO240-230VKBFSECO240UL-120V
Width net932 mm932 mm
Height net1,461 mm1,461 mm
Depth net796 mm796 mm

Internal Dimensions

DesignationKBFSECO240-230VKBFSECO240UL-120V
Interior width650 mm650 mm
Interior height785 mm785 mm
Interior depth485 mm485 mm
Unit doors11

Environment-specific data

DesignationKBFSECO240-230VKBFSECO240UL-120V
Sound-pressure level46 dB(A)46 dB(A)
Energy consumption at 25°C and 60% RH55 Wh/h55 Wh/h
Energy consumption at 40°C and 75% RH85 Wh/h85 Wh/h

Fixtures

DesignationKBFSECO240-230VKBFSECO240UL-120V
Number of shelves (std./max.)2/92/9
Specifikationer
Varenr. BIN90200416
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0416
CE-godkendt Ja
