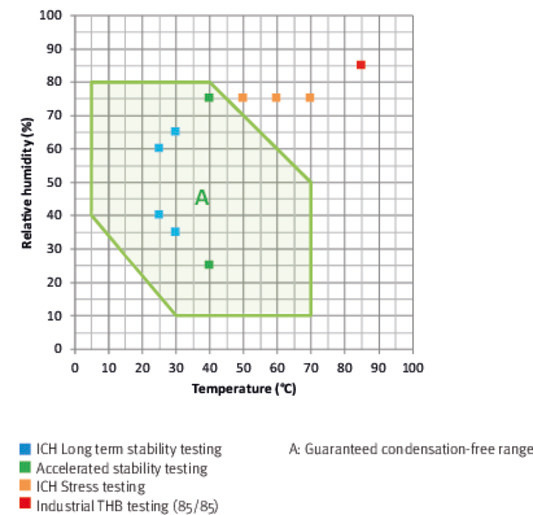

02 2022 02 kd kbf s eco en web 670x515 3

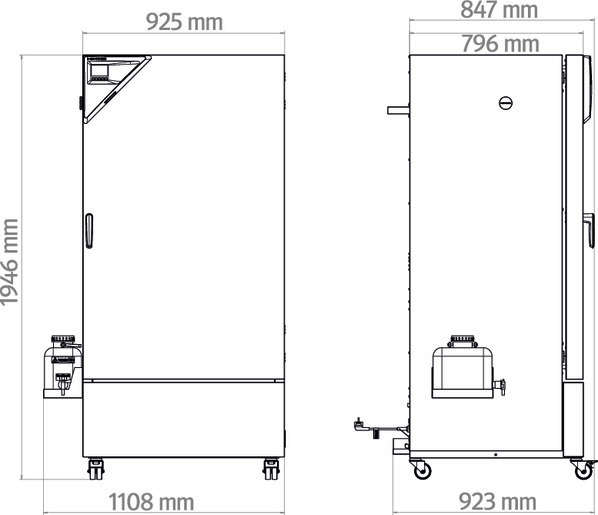

03 abmessung kbf s eco 400 9020 0463 web 670x515

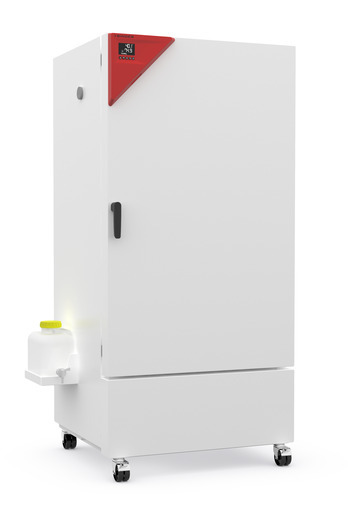

04 kbf s eco 400 constant climate chamber gs web 670x515

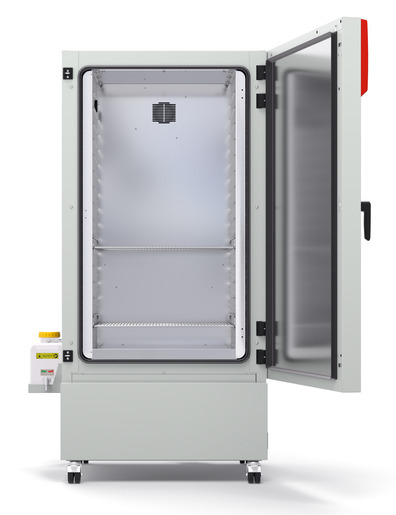

05 kbf s eco 400 constant climate chamber of web 670x515

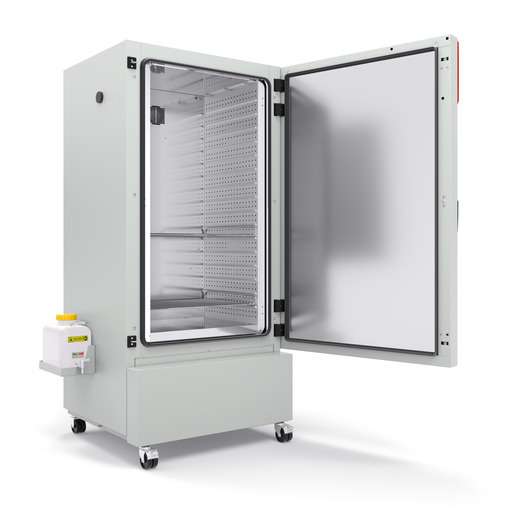

06 kbf s eco 400 constant climate chamber os web 670x515

KBFSECO400-230V, Standard, Series KBF-S ECO Solid.

Varenr. BIN90200463

Benefits

  • Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
  • Reliable thanks to failsafe operation without compromise.
  • Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
  • Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
Beskrivelse

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KBF-S ECO climatic chamber is one of the most energy-efficient constant climate chambers on the market. The thermoelectric cooling technology means the KBF-S ECO series is also very quiet during operation.

Benefits

  • Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
  • Reliable thanks to failsafe operation without compromise.
  • Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
  • Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.

Important characteristics

  • Temperature range: 0 °C to +70 °C (max. 26 °C under ambient temperature)
  • Humidity range: 10% to 80% RH
  • APT.line preheating chamber technology
  • Independent water supply via tank
  • LCD to display temperature and humidity along with additional information and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Inner chamber made completely of stainless steel
  • 2 stainless steel racks, including shelf carrier
  • Access port with silicone plug Ø 30 mm, left
  • Computer interface: Ethernet

Performance Data Temperature

DesignationKBFSECO400-230VKBFSECO400UL-120V
Temperature range(max. 26 °C under ambient temperature) 0...70 °C(max. 26 °C under ambient temperature) 0...70 °C
Max. heat compensation at 40°C300 W300 W

Performance Data Climate

DesignationKBFSECO400-230VKBFSECO400UL-120V
Temperature range with humidity(max. 26 °C under ambient temperature) 5...70 °C(max. 26 °C under ambient temperature) 5...70 °C
Humidity range10...80 % RH10...80 % RH
Temperature uniformity at 25°C and 60% RH0.1 ± K0.1 ± K
Temperature uniformity at 40°C and 75% RH0.5 ± K0.5 ± K
Temperature fluctuation at 25°C and 60% RH0.1 ± K0.1 ± K
Temperature fluctuation at 40°C and 75% RH0.1 ± K0.1 ± K
Recovery time after door was opened for 30 s at 25°C and 60% RH6 min6 min
Recovery time after door was opened for 30 s at 40°C and 75% RH15 min15 min

Electrical data

DesignationKBFSECO400-230VKBFSECO400UL-120V
Rated Voltage200...230 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power1,1 kW1,1 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationKBFSECO400-230VKBFSECO400UL-120V
Interior volume400 L400 L
Net weight of the unit (empty)192 kg192 kg
Load per rack30 kg30 kg
Permitted load120 kg120 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise180 mm180 mm

Housing dimensions not incl. fittings and connections

DesignationKBFSECO400-230VKBFSECO400UL-120V
Width net925 mm925 mm
Height net1,946 mm1,946 mm
Depth net796 mm796 mm

Internal Dimensions

DesignationKBFSECO400-230VKBFSECO400UL-120V
Interior width650 mm650 mm
Interior height1,268 mm1,268 mm
Interior depth485 mm485 mm
Unit doors11

Environment-specific data

DesignationKBFSECO400-230VKBFSECO400UL-120V
Sound-pressure level45 dB(A)45 dB(A)
Energy consumption at 25°C and 60% RH60 Wh/h60 Wh/h
Energy consumption at 40°C and 75% RH70 Wh/h70 Wh/h

Fixtures

DesignationKBFSECO400-230VKBFSECO400UL-120V
Number of shelves (std./max.)2/152/15
Specifikationer
Varenr. BIN90200463
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0463
CE-godkendt Ja
