KBFSECO720-230V, Standard, Series KBF-S ECO Solid.

Varenr. BIN90200418

Benefits

  • Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
  • Reliable thanks to failsafe operation without compromise.
  • Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
  • Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.
Beskrivelse

Thanks to thermoelectric cooling technology with patented heat dissipation, the new KBF-S ECO climatic chamber is one of the most energy-efficient constant climate chambers on the market. The thermoelectric cooling technology means the KBF-S ECO series is also very quiet during operation.

Benefits

  • Safe thanks to standard-compliant testing according to the ICH Q1A guideline, even with full load.
  • Reliable thanks to failsafe operation without compromise.
  • Smart, as a wide range of accessories makes it highly compatible for adaptation to specific customer requirements.
  • Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling.

Important characteristics

  • Temperature range: 0 °C to +70 °C (max. 24 °C under ambient temperature)
  • Humidity range: 10% to 80% RH
  • APT.line preheating chamber technology
  • Independent water supply via tank
  • LCD to display temperature and humidity along with additional information and alarms
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Inner chamber made completely of stainless steel
  • 2 stainless steel racks, including shelf carrier
  • Access port with silicone plug Ø 30 mm, left
  • Computer interface: Ethernet

Performance Data Temperature

DesignationKBFSECO720-230VKBFSECO720UL-120V
Temperature range(max. 24 °C under ambient temperature) 0...70 °C(max. 24 °C under ambient temperature) 0...70 °C
Max. heat compensation at 40°C400 W400 W

Performance Data Climate

DesignationKBFSECO720-230VKBFSECO720UL-120V
Temperature range with humidity(max. 24 °C under ambient temperature) 5...70 °C(max. 24 °C under ambient temperature) 5...70 °C
Humidity range10...80 % RH10...80 % RH
Temperature uniformity at 25°C and 60% RH0.1 ± K0.1 ± K
Temperature uniformity at 40°C and 75% RH0.3 ± K0.3 ± K
Temperature fluctuation at 25°C and 60% RH0.1 ± K0.1 ± K
Temperature fluctuation at 40°C and 75% RH0.1 ± K0.1 ± K
Recovery time after door was opened for 30 s at 25°C and 60% RH7 min7 min
Recovery time after door was opened for 30 s at 40°C and 75% RH17 min17 min

Electrical data

DesignationKBFSECO720-230VKBFSECO720UL-120V
Rated Voltage200...230 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power1,2 kW1,2 kW
Unit fuse16,0 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationKBFSECO720-230VKBFSECO720UL-120V
Interior volume700 L700 L
Net weight of the unit (empty)267 kg267 kg
Load per rack45 kg45 kg
Permitted load150 kg150 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise180 mm180 mm

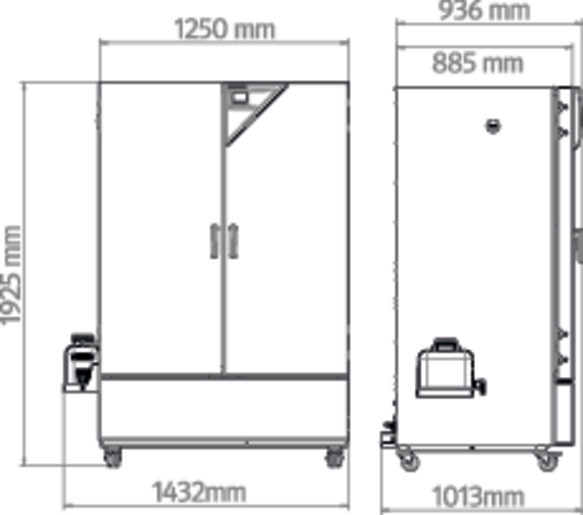

Housing dimensions not incl. fittings and connections

DesignationKBFSECO720-230VKBFSECO720UL-120V
Width net1,254 mm1,254 mm
Height net1,925 mm1,925 mm
Depth net885 mm885 mm

Internal Dimensions

DesignationKBFSECO720-230VKBFSECO720UL-120V
Interior width973 mm973 mm
Interior height1,250 mm1,250 mm
Interior depth576 mm576 mm
Unit doors22

Environment-specific data

DesignationKBFSECO720-230VKBFSECO720UL-120V
Sound-pressure level48 dB(A)48 dB(A)
Energy consumption at 25°C and 60% RH90 Wh/h90 Wh/h
Energy consumption at 40°C and 75% RH130 Wh/h130 Wh/h

Fixtures

DesignationKBFSECO720-230VKBFSECO720UL-120V
Number of shelves (std./max.)2/152/15
Specifikationer
Varenr. BIN90200418
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0418
CE-godkendt Ja
