IKA FLOW System

Varenr. IKA0020100742

Flow chemistry made easy and affordable with IKA FLOW. Its secret: Unlike other commercially available flow chemistry equipment, you just purchase the necessary part of the flow chemistry apparatus.

Beskrivelse

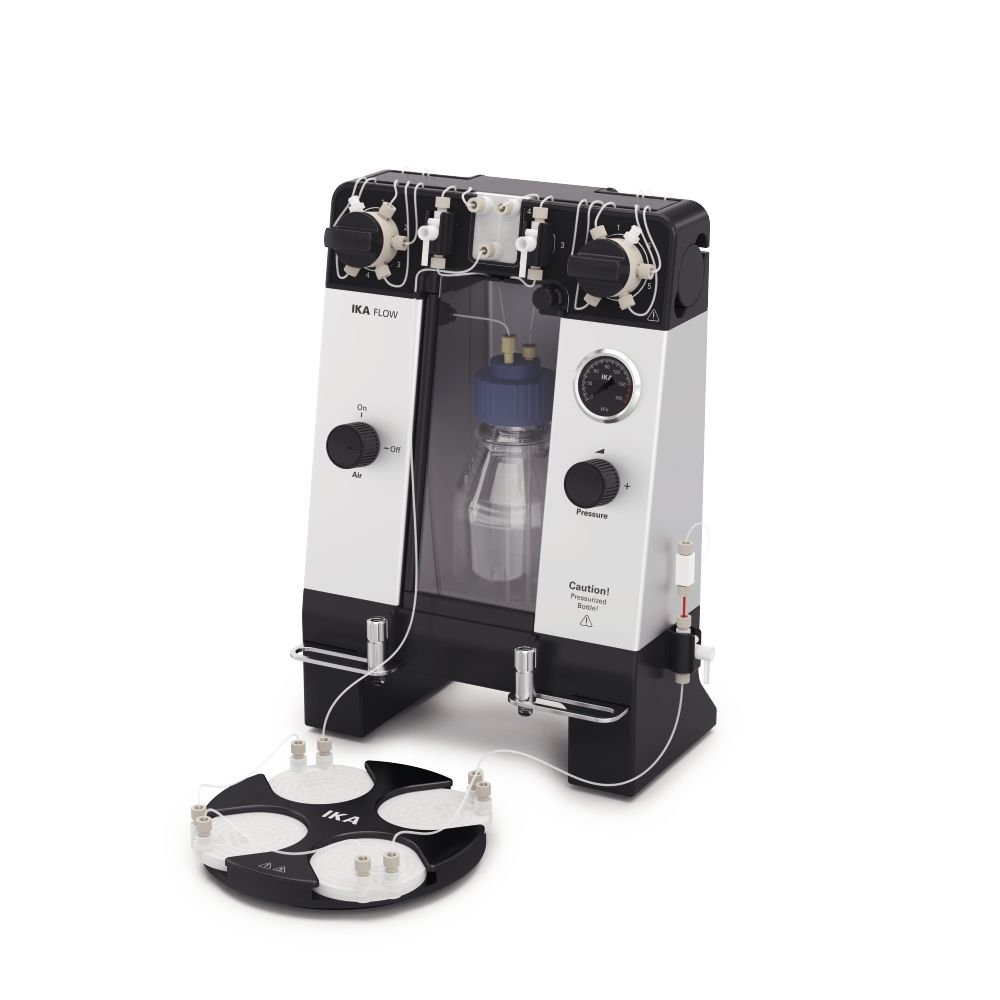

IKA FLOW System

The images do not correspond to scope of delivery.

Flow chemistry made easy and affordable with IKA FLOW. Its secret: Unlike other commercially available flow chemistry equipment, you just purchase the necessary part of the flow chemistry apparatus.

The portable IKA FLOW is an attachment that forms a flow chemistry reactor in combination with your IKA magnetic stirrer RCT digital. In addition, it has been designed to be used with any fume hood gas source (with a 6 mm pressure tubing and an adaptor to typical fume hood gas supplies) such as compressed air or nitrogen.
IKA FLOWs scope of delivery includes in addition to the attachment, a glass bottle, a mixing chip, support screws, three on-and-off valves, a heating block, four disc reactors, and a labeled tubing set.

We absolutely recommend pairing your IKA FLOW with the RCT digital stirrer hotplate.

Scope of delivery

  • IKA FLOW System
  • Glass Bottle
  • Heating Block
  • CDR.PP standard (4 pcs.)
  • Capillary Set
  • Tubing set

Technical Data

StandardDIN EN 1595
Max. Solvent Volume500 ml
Connection TypePush-to-Connect // Screw Fittings
Inlet Tubing Outer Diameter6.35 mm
Tubing A Outer Diameter3.2 mm
Tubing A Inner Diameter1.6 mm
Tubing 0-11 Outer Diameter1.6 mm
Tubing 0-9 & 11 Inner Diameter0.8 mm
Main Housing Material304 Stainless Steel, Nylon (PA)
Main Housing Dimensions (w x h x d)250 x 375 x 140 mm
Main Housing Weight2.7 kg
Heating Block MaterialAluminum
Heating Block Dimensions (dia x h)175 x 25.5 mm
Heating Block Weight0.65 kg
Disc Reactor MaterialPolypropylene (PP)
Disc Reactor Volume4092 mm^3
Max. Input Pressure1 MPa
Input PressurePressure of the gas from fume hood
Max. Working Pressure137 kPa
Working PressurePressure of the gas in solvent bottle
Max. Working Temperature100 °C
Capillary 1 Inner Diameter0.125 mm
Capillary 1 Length50 mm
Capillary 2 Inner Diameter0.125 mm
Capillary 2 Length100 mm
Capillary 3 Inner Diameter0.18 mm
Capillary 3 Length50 mm
Capillary 4 Inner Diameter0.25 mm
Capillary 4 Length100 mm
Dimensions (W x H x D)250 x 400 x 350 mm
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0020100742
Antal / pk 1
Enhed stk
Min. bestilling 1
CE-godkendt Ja
