IKA PT 1000.70 Temperature sensor, glass coated

Varenr. IKA0003736000

For use with RCT basic, RET basic and C-MAG HS digital series.
Glass-coated temperature sensor for work with aggressive media such as acid and alkaline solutions.

Beskrivelse

PT 1000.70 Temperature sensor, glass coated

For use with RCT basic, RET basic and C-MAG HS digital series.
Glass-coated temperature sensor for work with aggressive media such as acid and alkaline solutions.
Depth of immersion: 230 mm
Diameter: 7 mm
Material: borosilicate glass 3.3

Technical Data

Probe typeImmersion probe
Sensor typePT1000 (DIN IEC 751 Class A)
Accuracy of temperature measurement± (0,15 + 0,2% o.Mv.) K
Response time t9/1010 sec
Temperature measuring range-10 - +400 °C
Material of probe tubestainless steel 1.4571
Coating of probe tubeglass
Diameter of probe tube7 mm
Length of probe tube230 mm
Immersion depth min.30 mm
Cable length1000 mm
Probe connectionDIN 45322
Weight0.083 kg
Specifikationer
Varenr. IKA0003736000
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0003736000
Vægt 0,083
CE-godkendt Ja
Filer

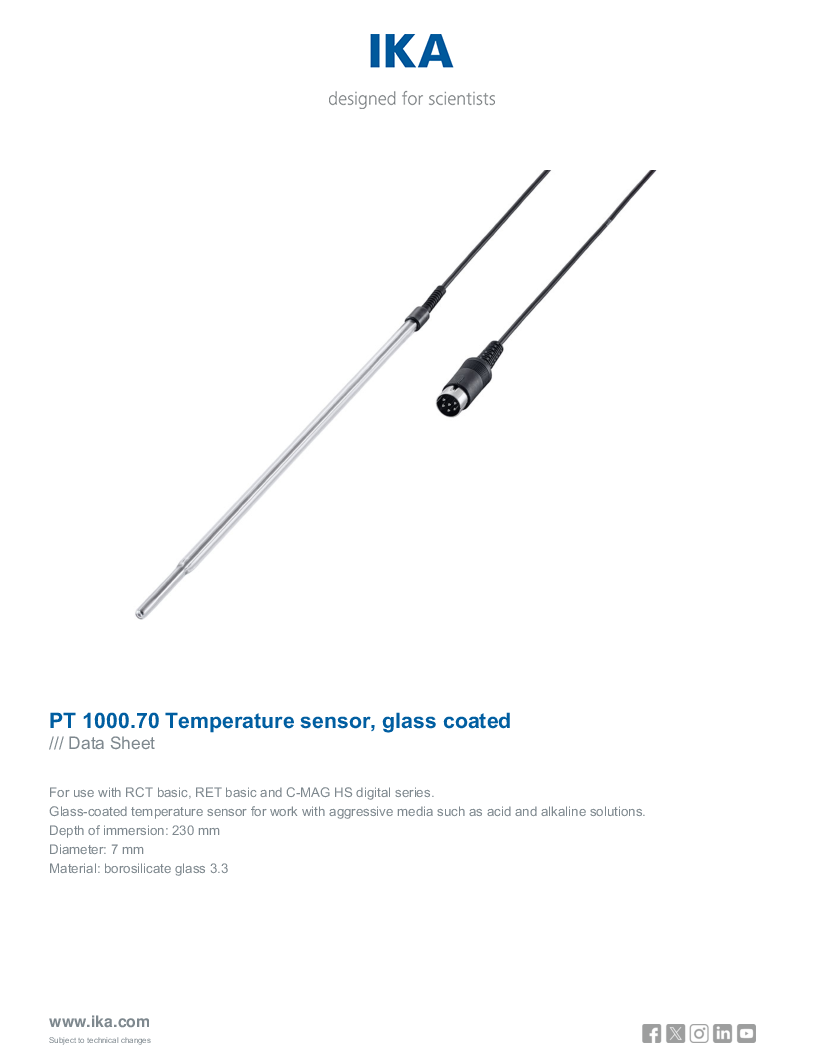

Data Sheet PT 1000.70 Temperature sensor glass coated
