IKA S 25 KD - LR - 25 F Dispersing tool

Varenr. IKA0025007322

The S 25 KD - LR - 25 F dispersing tool was specially developed to use with the IKA laboratory reactors. It is slightly longer than the standard dispersing tools, allowing for a deeper tool immersion within the reactors and the processing of even lower minimum sample volumes. In addition, this tool can be used in conjunction with vacuum conditions of up to 100 mbar.

Beskrivelse

S 25 KD - LR - 25 F Dispersing tool

The S 25 KD - LR - 25 F dispersing tool was specially developed to use with the IKA laboratory reactors. It is slightly longer than the standard dispersing tools, allowing for a deeper tool immersion within the reactors and the processing of even lower minimum sample volumes. In addition, this tool can be used in conjunction with vacuum conditions of up to 100 mbar.

The F tool is able to achieve an even finer ultimate particle size compared to the G tools.

Tool disassembly for cleaning and maintenance is made simpler with this new design.

Compatible with: T 25 digital, T 25 easy clean digital, T 25 easy clean control

Technical Data

Volume range (H2O)0.1 - 2 l
Stator diameter25 mm
Rotor diameter18 mm
Gap between rotor and stator0.5 mm
allowable Speed max.25000 rpm
Circumferential speed max.23.6 m/s
Immersion depth40 - 220 mm
Shaft length267 mm
Material in contact with mediumFFPM, PTFE, AISI 316L
pH range2 - 13
Suitable for solventsyes
Working temperature max.150 °C
Sterilization methodsall methods except hot air
Vacuum100 mbar
Ultimate fineness, suspensions5 - 25 µm
Ultimate fineness, emulsions1 - 5 µm
FDA conformityyes
Weight0.404 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025007322
Antal / pk 1
Enhed stk
Min. bestilling 1
CE-godkendt Ja
Filer

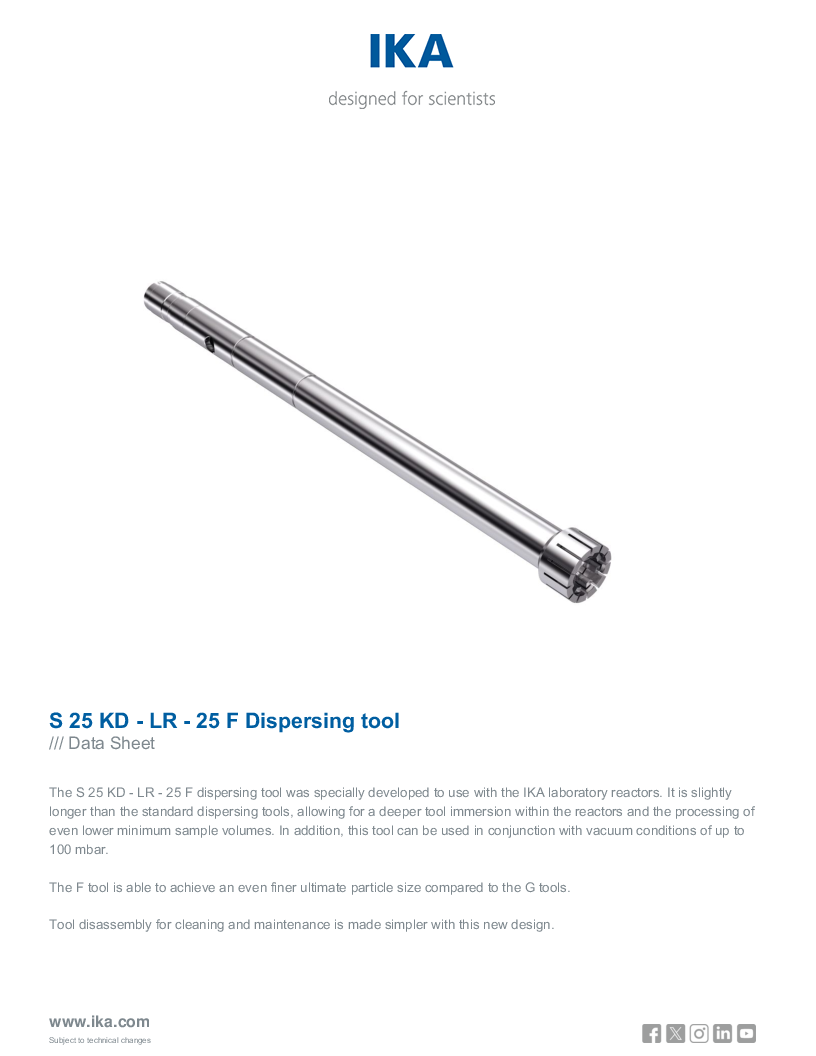

Data Sheet S 25 KD LR 25 F Dispersing tool
