01-ika-0025006851

VOL-SP-11 Spindle for VOLS-1, 11 ml

Varenr. IKA0025006851

VOL-SP-11 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 11 ml

Beskrivelse

VOL-SP-11

VOL-SP-11 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 11 ml

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Hook connectoryes
Diameter9.4 mm
Immersion depth36.2 mm
Spindle length77.3 mm
Sample volume11 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max.100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi585.8 mPa.s
Max. FSR match ROTAVISC lo-vi117163 mPa.s
Min. FSR match ROTAVISC me-vi6250 mPa.s
Max. FSR match ROTAVISC me-vi1250000 mPa.s
Min. FSR match ROTAVISC hi-vi I12500 mPa.s
Max. FSR match ROTAVISC hi-vi I2500000 mPa.s
Min. FSR match ROTAVISC hi-vi II50000 mPa.s
Max. FSR match ROTAVISC hi-vi II10000000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)11 x 79 x 11 mm
Weight0.021 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006851
Antal / pk 1
Enhed stk
Min. bestilling 1
UNSPSC 41103312
CE-godkendt Ja
Filer

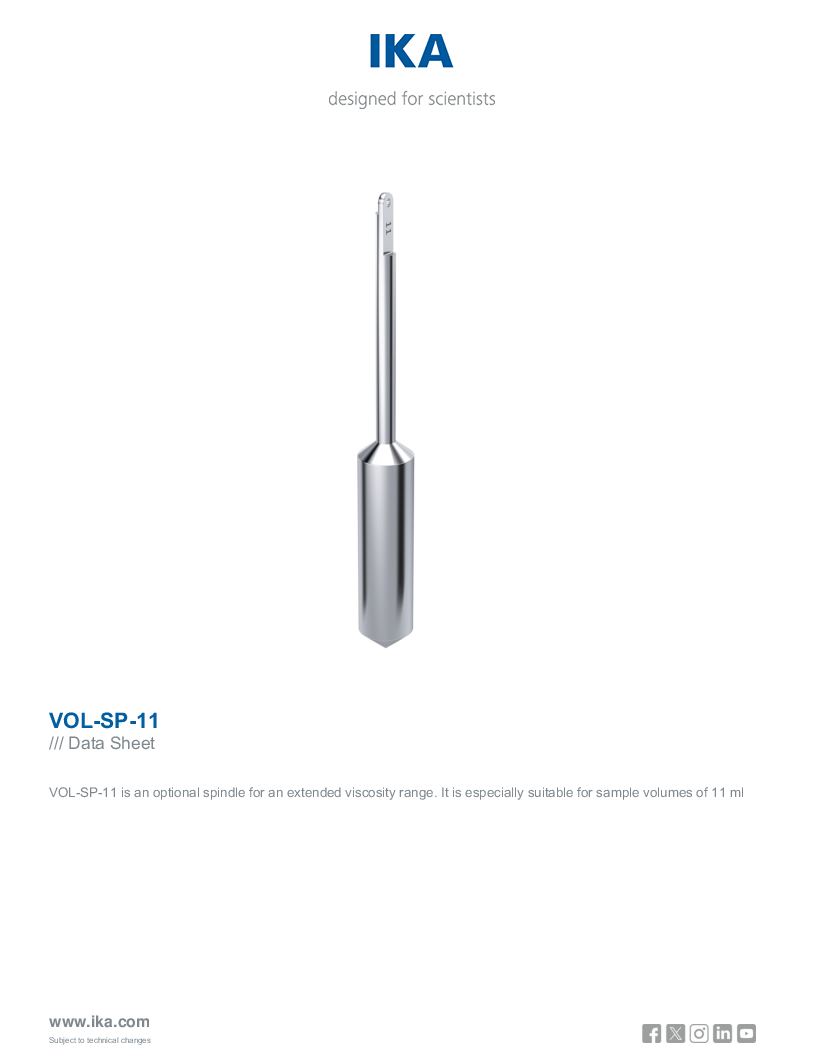

Data Sheet VOL SP 11
Data Sheet VOL SP 11
Vis Download
