VOL-SP-3.8 Spindle for 3.8 ml chamber

Varenr. IKA0025007062

VOL-SP-3.8 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 3.8 ml.

Beskrivelse

VOL-SP-3.8

VOL-SP-3.8 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 3.8 ml.

It is required to use the 3.8 ml chamber VOL-C-RTD-3.8 in combination with the VOL-SP-3.8 spindle. The chamber is available as accessory.

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Hook connectoryes
Diameter9.6 mm
Immersion depth36.8 mm
Spindle length60 mm
Sample volume3.8 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max.100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi234.3 mPa.s
Max. FSR match ROTAVISC lo-vi46865 mPa.s
Min. FSR match ROTAVISC me-vi2500 mPa.s
Max. FSR match ROTAVISC me-vi500000 mPa.s
Min. FSR match ROTAVISC hi-vi I5000 mPa.s
Max. FSR match ROTAVISC hi-vi I1000000 mPa.s
Min. FSR match ROTAVISC hi-vi II20000 mPa.s
Max. FSR match ROTAVISC hi-vi II4000000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)12 x 62 x 12 mm
Weight0.013 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025007062
Antal / pk 1
Enhed stk
Min. bestilling 1
UNSPSC 41103312
CE-godkendt Ja
Filer

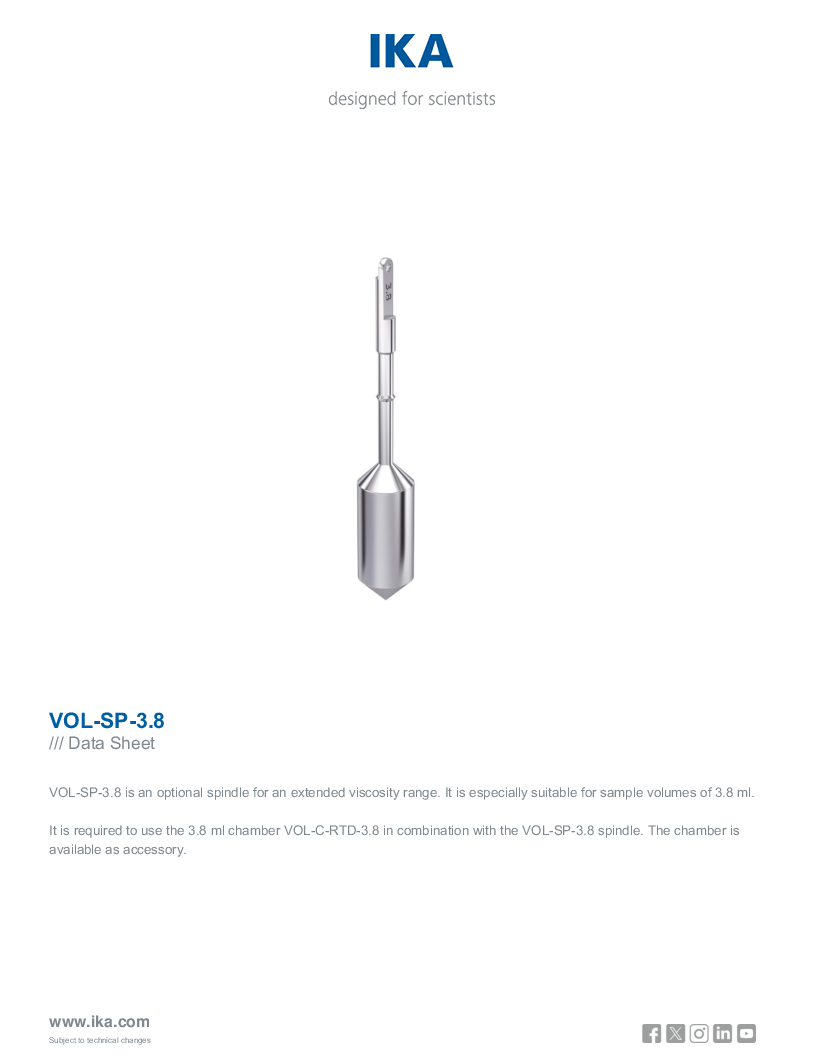

Data Sheet VOL SP 3.8
