VOL-SP-9 Spindle for VOLS-1, 9 ml

Varenr. IKA0025006846

VOL-SP-9 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 9 ml.

Beskrivelse

VOL-SP-9

VOL-SP-9 is an optional spindle for an extended viscosity range. It is especially suitable for sample volumes of 9 ml.

Technical Data

Spindle geometryCylinder
ConnectionThread M2.5 LH
Hook connectoryes
Diameter11.8 mm
Immersion depth35.4 mm
Spindle length77.5 mm
Sample volume9 ml
Flow Jacketyes
Mounting Bracketyes
Sample container:Specified chamber
Working temperature max.100 °C
Viscosity Accuracy (FSR)2 %
Viscosity Repeatibility (FSR)0.2 %
Min. FSR match ROTAVISC lo-vi150 mPa.s
Max. FSR match ROTAVISC lo-vi29994 mPa.s
Min. FSR match ROTAVISC me-vi1600 mPa.s
Max. FSR match ROTAVISC me-vi320000 mPa.s
Min. FSR match ROTAVISC hi-vi I3200 mPa.s
Max. FSR match ROTAVISC hi-vi I640000 mPa.s
Min. FSR match ROTAVISC hi-vi II12800 mPa.s
Max. FSR match ROTAVISC hi-vi II2560000 mPa.s
Material in contact with mediumstainless steel 1.4404
Dimensions (W x H x D)14 x 80 x 14 mm
Weight0.028 kg
Permissible ambient temperature5 - 40 °C
Specifikationer
Varenr. IKA0025006846
Antal / pk 1
Enhed stk
Min. bestilling 1
UNSPSC 41103312
CE-godkendt Ja
Filer

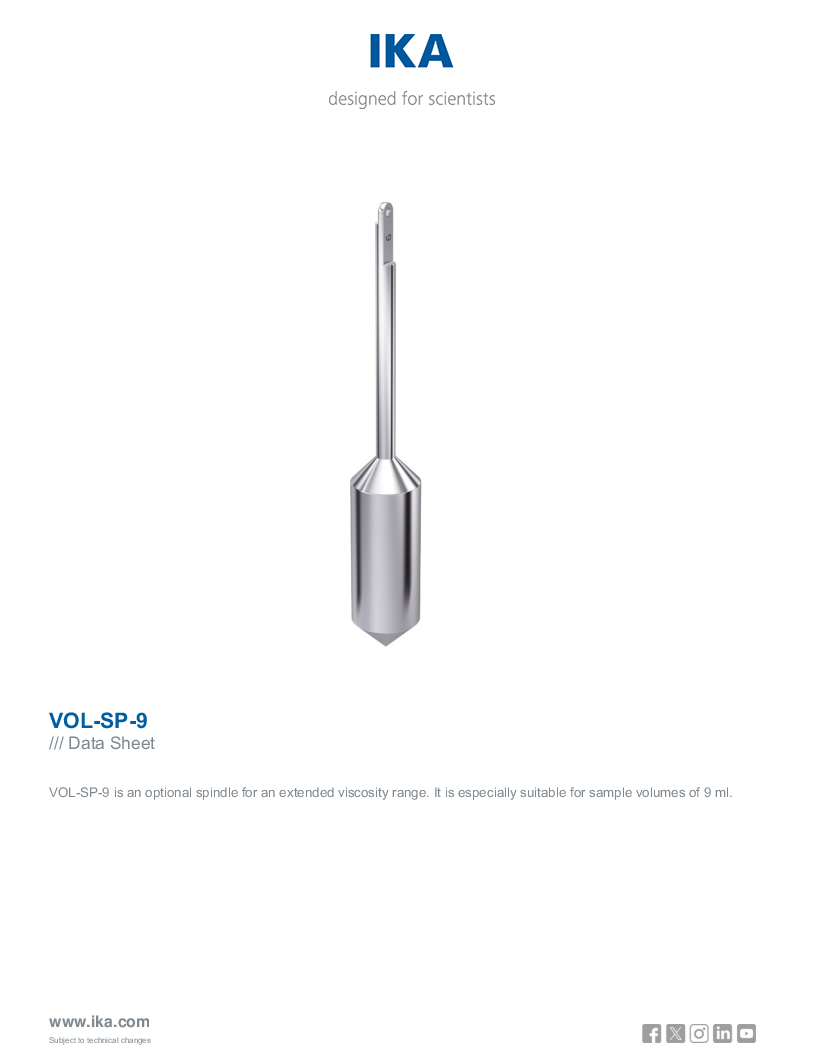

Data Sheet VOL SP 9
