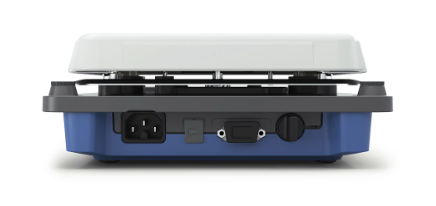

02 20240418110932

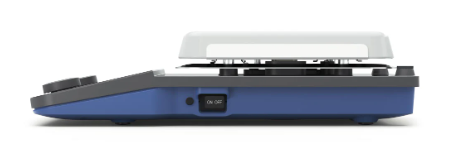

03 20240418110939

IKA C-MAG HS 7 Magnetomrører, 50-1500 rpm

Varenr. IKA0020002694

The IKA C-Mag HS 7 control has a square top made of ceramic. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm.

Beskrivelse

C-MAG HS 7 control

The IKA C-Mag HS 7 control has a square top made of ceramic. It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm. IKAs stands strongly by its product and technology and is offering a lifetime warranty for this product - scientists can focus on their experiments using a reliable hotplate stirrer. IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface. The C-Mag HS 7 control improves over time with regular firmware updates - control of kinetics and sensitive reactions are supported by the integrated timer and counter function - the IKA SmartTemp® function protects user intelligently. Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium. Function selectable, timeout time adjustable (Error 5). PT1000 temperature sensor included.

Scope of delivery

  • C-MAG HS 7 control
  • PT 1000.60 Temperature sensor, stainless steel
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • Screw driver
  • USB A-B Cable

Technical Data

Number of stirring positions1
Stirring quantity max. per stirring position (H2O)20 l
Maximun load25 kg
Motor rating output9 W
Direction of rotationright / left
Speed display set-valueLCD
Speed display actual-valueLCD
Speed adjustmentTurning knob
Speed range50 - 1500 rpm
Setting accuracy speed10 rpm
Stirring bar length30 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)+2 K
Heat output1000 W
Temperature display set-valueLCD
Temperature display actual-valueLCD
Temperature unit°C
Heating temperature rangeroom temp. - 500 °C
Heat controlTurning knob
Display resolution1 K
Temperature setting range0 - 500 °C
Temperature setting resolution of heating plate5 K
Connection for ext. temperature sensorPT1000, ETS-D5, ETS-D6
Temperature setting resolution of medium1 K
Adjustable safety circuit100 - 650 °C
Set-up plate materialceramic
Set-up plate dimensions180 x 180 mm
Automatic reverse rotationyes
Intermittent modeyes
Viscosity trend measurementyes
Timeryes
Timer displayLCD
Time setting min.1 s
Time setting max.143940 min
Sensor in medium detection (Error 5)yes
Temperature measure range PT1000-10 - 350 °C
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C)±2 %
Heating rate (1l H2O in H1500)5 K/min
Heat control accuracy of heating plate (at 100°C)±5 K
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)±0.5 K
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)±0.5 K
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C)±0.2 K
Dimensions (W x H x D)220 x 88 x 354 mm
Weight4 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
RS 232 interfaceyes
USB interfaceyes
Voltage220 - 230 V
Frequency50/60 Hz
Power input1020 W
Power input standby2 W
Specifikationer
Varenr. IKA0020002694
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0020002694
Type Single | Varme
Vægt 4
CE-godkendt Ja
