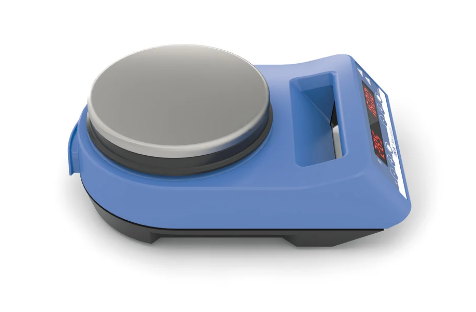

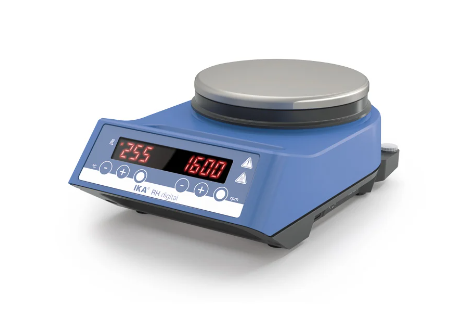

IKA RH digital Magnetomrører

Varenr. IKA0005019800

Innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. A high heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.

Beskrivelse

RH digital

Innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. A high heat output of 600 watts and stainless steel compound hot plate ensures rapid heating. Adjustable safety temperature from 100 to 360 °C.

  • Digital display of temperature and speed
  • Soft-start of stirring motor
  • Strong magnetic field and wide speed range for volumes up to 15 liters
  • Error code display
  • Easy operation with touch keypad

Scope of delivery

  • RH digital
  • IKAFLON® 20 Magnetic stirring bar
  • IKAFLON® 30 Magnetic stirring bar
  • IKAFLON® 40 Magnetic stirring bar
  • H 103 Cover for RH digital
  • H 102.1 Protection handle
  • Screwdriver (use for safety circuit)

Technical Data

Number of stirring positions1
Stirring quantity max. per stirring position (H2O)15 l
Maximun load20 kg
Motor rating output2 W
Direction of rotationleft
Speed display set-valueLED
Speed adjustmentButton
Speed range100 - 2000 rpm
Setting accuracy speed50 rpm
Stirring bar length20 - 80 mm
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h)+12 K
Heat output600 W
Temperature display set-valueLED
Temperature unit°C
Heating temperature range50 - 320 °C
Heat controlButton
Temperature setting range50 - 320 °C
Connection for ext. temperature sensorETS-D5
Adjustable safety circuit100 - 360 °C
Set-up plate materialstainless steel 1.4301
Set-up plate dimensionsØ 135 mm
Heating rate (1l H2O in H1500)6 K/min
Dimensions (W x H x D)160 x 100 x 250 mm
Weight3.845 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage230 V
Frequency50/60 Hz
Power input620 W
Specifikationer
Varenr. IKA0005019800
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0005019800
Type Single | Varme
CE-godkendt Ja
