Binder E28 Varmeskab, mekanisk, 28 liter

Varenr. BIN90100001

Benefits

Uniform drying conditions thanks to APT.line technology.
Identical test conditions throughout the chamber interior independent of sample size and quantity.
Outstanding thermal insulation saves operation costs.

Beskrivelse

Benefits

Uniform drying conditions thanks to APT.line technology
Identical test conditions throughout the chamber interior independent of sample size and quantity
Outstanding thermal insulation saves operation costs

Important characteristics

Temperature range: 60 °C to 230 °C
Adjustable exhaust air flap
Hydro-mechanical thermostat
Class 1 temperature limitation device (Model E028-230V-T)
Timer 0 - 120 min
2 chrome-plated racks

Performance Data Temperature

Designation	E028-230V	E028-230V-T	E028-120V
Temperature range	60...230 °C	60...230 °C	60...230 °C
Heating up time to 150°C	36 min	36 min	36 min
Recovery time after door was opened for 30 s at 150°C	19 min	19 min	19 min

Electrical data

Designation	E028-230V	E028-230V-T	E028-120V
Rated Voltage	230 V		120 V
Power frequency	50/60 Hz	50/60 Hz	60 Hz
Nominal power	0,8 kW	0,8 kW	0,8 kW
Phase (Nominal voltage)	1~	1~	1~

Measures

Designation	E028-230V	E028-230V-T	E028-120V
Interior volume	28 L	28 L	28 L
Net weight of the unit (empty)	22 kg	22 kg	22 kg
Load per rack	10 kg	10 kg	10 kg
Permitted load	25 kg	25 kg	25 kg
Wall clearance back	160 mm	160 mm	160 mm
Wall clearance sidewise	100 mm	100 mm	100 mm

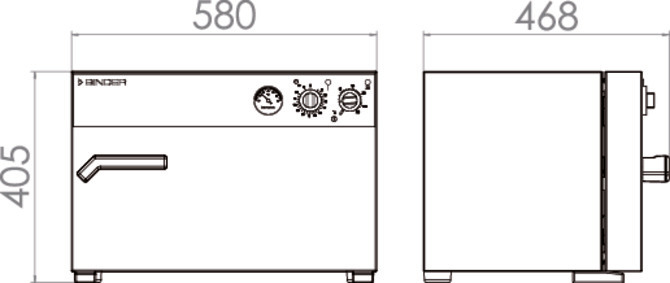

Housing dimensions not incl. fittings and connections

Designation	E028-230V	E028-230V-T	E028-120V
Width net	580 mm	580 mm	580 mm
Height net	405 mm	405 mm	405 mm
Depth net	425 mm	425 mm	425 mm

Internal Dimensions

Designation	E028-230V	E028-230V-T	E028-120V
Interior width	400 mm	400 mm	400 mm
Interior height	280 mm	280 mm	280 mm
Interior depth	250 mm	250 mm	250 mm
Unit doors	1	1	1

Fixtures

Designation	E028-230V	E028-230V-T	E028-120V
Number of shelves (std./max.)	2/4	2/4	2/4

Specifikationer

Varenr.	BIN90100001
Antal / pk	1
Enhed	stk
Min. bestilling	1
Leverandørens varenummer	9010-0001
CE-godkendt	Ja
