Binder B28 Inkubator CL, std., 70°C, 28 liter

Varenr. BIN90100002

Benefits

  • Safe and reproducible results even under high batch throughputs in long-term operation
  • Inner glass door for a stable atmosphere
Beskrivelse

With the B series incubator, you get a reliable and powerful unit in a solid configuration at a very attractive price.

Benefits

  • Safe and reproducible results even under high batch throughputs in long-term operation
  • Inner glass door for a stable atmosphere

Important characteristics

  • Temperature range: 30 °C to 70 °C
  • Hydro-mechanical thermostat

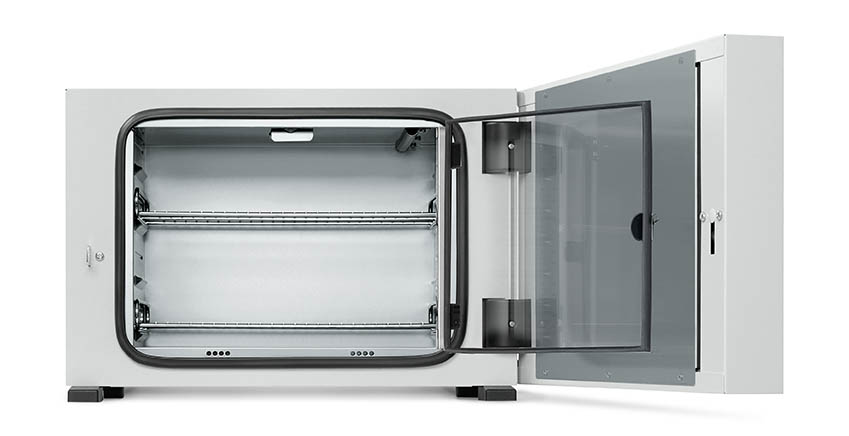

  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • stackable

Incubator with mechanical adjustment for optimum incubation

The BINDER B series features incubators with mechanical adjustment. The high quality standards and technical equipment make these incubators a fantastic solution for stable incubation processes, allowing optimum incubation of microbiological cultures and delivering reproducible results even under high batch throughputs in long-term operation.
The BINDER incubator with mechanical adjustment operates within a temperature range that can be set between 30 °C and 70 °C, and the chamber is fitted with a hydraulic/mechanical thermostat and two chrome-plated racks. The incubator inner door is made from tempered safety glass, guaranteeing a stable atmosphere.

Incubator with mechanical adjustment for a reliable solution

With the Classic.Line, BINDER has a whole range of incubators alongside the incubator with mechanical adjustment, including the BD series incubators with natural convection and the BF series incubators with forced convection. Whichever BINDER incubator you choose, you can be sure you will be getting a safe and reliable solution for your incubation processes.
The incubator with mechanical adjustment is manufactured in BINDER's own plant in Germany - just like all of the company's other incubators. They all have an impressively robust »Made in Germany« quality, combining state-of-the-art technology with precision.

Performance Data Temperature

DesignationB028-230VB028-120V
Temperature range30...70 °C30...70 °C
Temperature uniformity at 37°C1.5 ± K1.5 ± K
Temperature fluctuation at 37°C1 ± K1 ± K
Heating up time to 37°C95 min95 min

Electrical data

DesignationB028-230VB028-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power0,25 kW0,25 kW
Phase (Nominal voltage)1~1~

Measures

DesignationB028-230VB028-120V
Interior volume28 L28 L
Net weight of the unit (empty)23 kg23 kg
Load per rack10 kg10 kg
Permitted load25 kg25 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

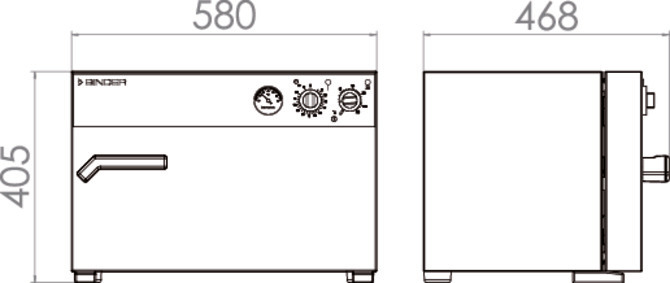

Housing dimensions not incl. fittings and connections

DesignationB028-230VB028-120V
Width net580 mm580 mm
Height net405 mm405 mm
Depth net425 mm425 mm

Internal Dimensions

DesignationB028-230VB028-120V
Interior width400 mm400 mm
Interior height280 mm280 mm
Interior depth250 mm250 mm
Unit doors11

Fixtures

DesignationB028-230VB028-120V
Number of shelves (std./max.)2/42/4
Specifikationer
Varenr. BIN90100002
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9010-0002
Type Udstyr
CE-godkendt Ja
