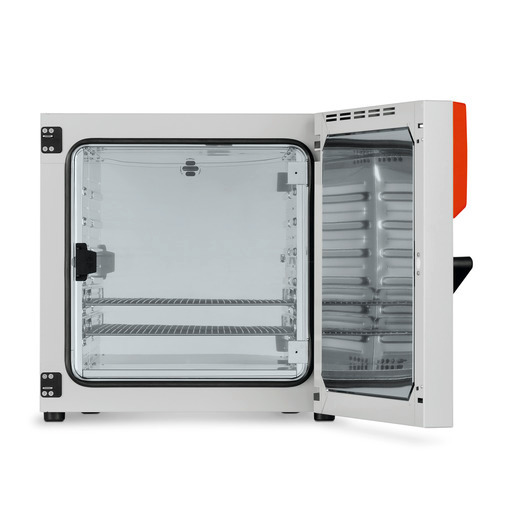

Binder BD115 Inkubator, std., AL, 100°C, 112 liter

Varenr. BIN90100325

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100°C disinfection routine
Beskrivelse

The BD Avantgarde.Line series is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media. The new design of the units and the homogeneous temperature distribution ensure the very best results.

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100 °C disinfection routine

Important characteristics

  • Temperature range: ambient temperature plus 5 °C to 100 °C
  • High temperature accuracy thanks to APT.line technology
  • Natural convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • Units up to 115 L are stackable
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

Incubator with natural convection from BINDER

If you are looking for stable incubation processes guaranteed, you need look no further than incubators from BINDER. Series BD incubators function with natural convection and, thanks to their state-of-the-art technical equipment, are a reliable choice for the incubation of microbiological cultures.
This BINDER incubator with natural convection comes in a range of versions and sizes. Operating within a temperature range of between 5 °C and 100 °C, they are equipped with the proven APT.line preheating chamber technology and an adjustable exhaust air flap. The inner door is made from tempered safety glass, guaranteeing a stable atmosphere.

Incubator with natural convection for optimum, reproducible results

This BINDER incubator with natural convection is really easy to use thanks to the controller with timer functions and the visual temperature alarm. The units can be stacked on top of one another for an optimum ratio between stand space and usable space.
Plus, compared to similar incubators, the units from BINDER boast high levels of temperature accuracy, excellent usability, and options for ease of cleaning. The incubator with natural convection guarantees results that are reproducible at any time, with uniform incubation conditions even under high batch throughputs in long-term operation. These incubators are ideal for all incubation processes within the fields of research, production, and quality assurance.

Performance Data Temperature

DesignationBD115-230VBD115UL-120V
Temperature range+5 °C above ambient temperature to 100 °C+5 °C above ambient temperature to 100 °C
Temperature uniformity at 100°C1 ± K1 ± K
Temperature uniformity at 37°C0.3 ± K0.3 ± K
Temperature fluctuation at 100°C0.3 ± K0.3 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Heating up time to 100°C90 min90 min
Heating up time to 37°C55 min55 min
Recovery time after door was opened for 30 s at 37°C15 min15 min

Electrical data

DesignationBD115-230VBD115UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power0,35 kW0,35 kW
Unit fuse6,3 A12,5 A
Phase (Nominal voltage)1~1~

Measures

DesignationBD115-230VBD115UL-120V
Interior volume112 L112 L
Net weight of the unit (empty)54 kg54 kg
Load per rack30 kg30 kg
Permitted load150 kg150 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

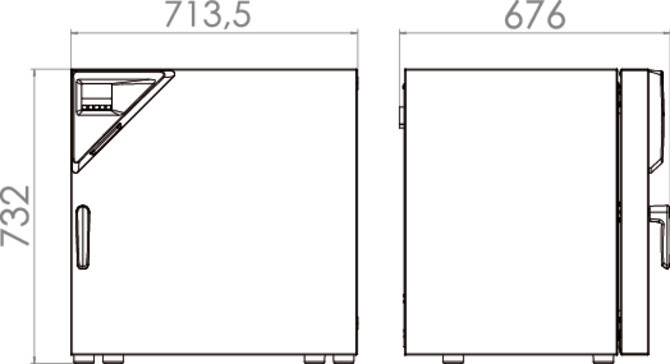

Housing dimensions not incl. fittings and connections

DesignationBD115-230VBD115UL-120V
Width net710 mm710 mm
Height net705 mm705 mm
Depth net605 mm605 mm

Internal Dimensions

DesignationBD115-230VBD115UL-120V
Interior width510 mm510 mm
Interior height530 mm530 mm
Interior depth420 mm420 mm
Inner doors11
Unit doors11

Environment-specific data

DesignationBD115-230VBD115UL-120V
Energy consumption at 100°C150 Wh/h150 Wh/h
Energy consumption at 37°C25 Wh/h25 Wh/h

Fixtures

DesignationBD115-230VBD115UL-120V
Number of shelves (std./max.)2/52/5
Specifikationer
Varenr. BIN90100325
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9010-0325
Type Udstyr
CE-godkendt Ja
