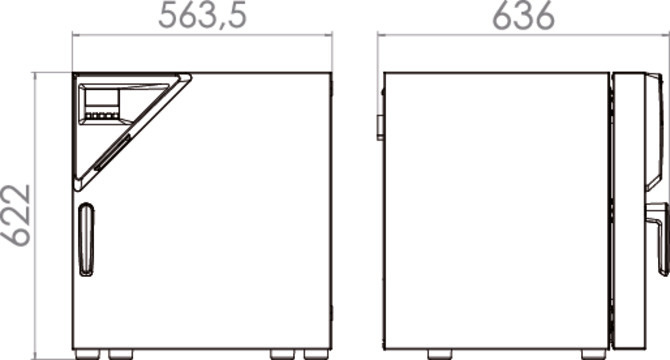

01 abmessungen bd bf ed fd fed056 avantgarde web 670x515

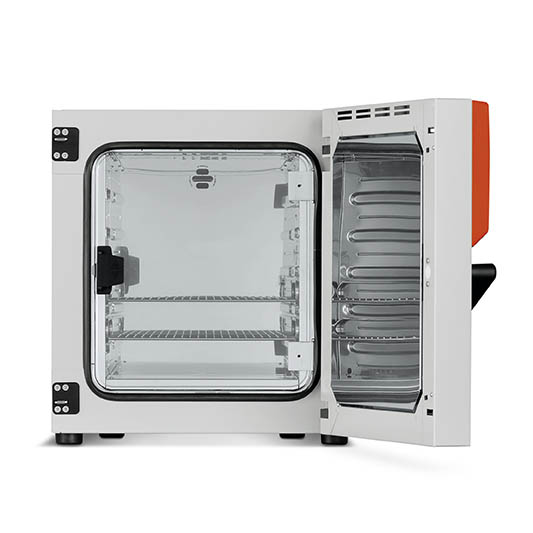

02 bd 056 of

Binder BD56 Inkubator, std., AL, 100°C, 56 liter

Varenr. BIN90100323

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100°C disinfection routine
Beskrivelse

The BD Avantgarde.Line series is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media. The new design of the units and the homogeneous temperature distribution ensure the very best results.

Benefits

  • Excellent temporal and spatial temperature accuracy
  • High process reliability
  • 100 °C disinfection routine

Important characteristics

  • Temperature range: ambient temperature plus 5 °C to 100 °C
  • High temperature accuracy thanks to APT.line technology
  • Natural convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • Inner door made of tempered safety glass
  • 2 chrome-plated racks
  • Units up to 115 L are stackable
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

Incubator with natural convection from BINDER

If you are looking for stable incubation processes guaranteed, you need look no further than incubators from BINDER. Series BD incubators function with natural convection and, thanks to their state-of-the-art technical equipment, are a reliable choice for the incubation of microbiological cultures.
This BINDER incubator with natural convection comes in a range of versions and sizes. Operating within a temperature range of between 5 °C and 100 °C, they are equipped with the proven APT.line preheating chamber technology and an adjustable exhaust air flap. The inner door is made from tempered safety glass, guaranteeing a stable atmosphere.

Incubator with natural convection for optimum, reproducible results

This BINDER incubator with natural convection is really easy to use thanks to the controller with timer functions and the visual temperature alarm. The units can be stacked on top of one another for an optimum ratio between stand space and usable space.
Plus, compared to similar incubators, the units from BINDER boast high levels of temperature accuracy, excellent usability, and options for ease of cleaning. The incubator with natural convection guarantees results that are reproducible at any time, with uniform incubation conditions even under high batch throughputs in long-term operation. These incubators are ideal for all incubation processes within the fields of research, production, and quality assurance.

Performance Data Temperature

DesignationBD056-230VBD056UL-120V
Temperature range+5 °C above ambient temperature to 100 °C+5 °C above ambient temperature to 100 °C
Temperature uniformity at 100°C1.1 ± K1.1 ± K
Temperature uniformity at 37°C0.3 ± K0.3 ± K
Temperature fluctuation at 100°C0.3 ± K0.3 ± K
Temperature fluctuation at 37°C0.1 ± K0.1 ± K
Heating up time to 100°C75 min75 min
Heating up time to 37°C52 min52 min
Recovery time after door was opened for 30 s at 37°C15 min15 min

Electrical data

DesignationBD056-230VBD056UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power0,3 kW0,3 kW
Unit fuse6,3 A12,5 A
Phase (Nominal voltage)1~1~

Measures

DesignationBD056-230VBD056UL-120V
Interior volume57 L57 L
Net weight of the unit (empty)39 kg39 kg
Load per rack30 kg30 kg
Permitted load70 kg70 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationBD056-230VBD056UL-120V
Width net560 mm560 mm
Height net625 mm625 mm
Depth net565 mm565 mm

Internal Dimensions

DesignationBD056-230VBD056UL-120V
Interior width360 mm360 mm
Interior height420 mm420 mm
Interior depth380 mm380 mm
Inner doors11
Unit doors11

Environment-specific data

DesignationBD056-230VBD056UL-120V
Energy consumption at 100°C110 Wh/h110 Wh/h
Energy consumption at 37°C25 Wh/h25 Wh/h

Fixtures

DesignationBD056-230VBD056UL-120V
Number of shelves (std./max.)2/42/4
Specifikationer
Varenr. BIN90100323
Antal / pk 1
Enhed stk
Leverandørens varenummer 9010-0323
UNSPSC 41104400
Type Udstyr
CE-godkendt Ja
