Binder ED-S115 Varmeskab, SL, NK, 118 liter

Varenr. BIN90900020

Benefits

  • Easy handling.
  • Accurate temperature control.
  • Simple and ergonomic door opening.
Beskrivelse

The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.

Benefits

  • Easy handling
  • Accurate temperature control
  • Simple and ergonomic door opening

Important characteristics

  • Temperature range: ambient temperature +7 °C to 250 °C
  • APT.line preheating chamber technology
  • Natural convection
  • Adjustable exhaust air flap
  • Controller with timer function
  • 1 chrome-plated rack, incl. shelf supports
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm

Performance Data Temperature

DesignationEDS115-230VEDS115UL-120V
Temperature range+7 °C above ambient temperature to 250 °C+7 °C above ambient temperature to 250 °C
Temperature uniformity at 150°C2.8 ± K2.8 ± K
Temperature fluctuation at 150°C0.9 ± K0.9 ± K
Heating up time to 150°C55 min55 min

Electrical data

DesignationEDS115-230VEDS115UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power1,25 kW1,35 kW
Unit fuse6,3 A6,3 A
Phase (Nominal voltage)1~1~

Measures

DesignationEDS115-230VEDS115UL-120V
Interior volume118 L118 L
Net weight of the unit (empty)50 kg50 kg
Load per rack20 kg20 kg
Permitted load75 kg75 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

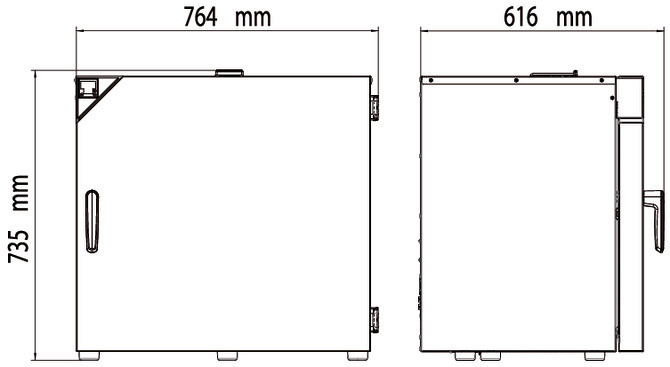

Housing dimensions not incl. fittings and connections

DesignationEDS115-230VEDS115UL-120V
Width net764 mm764 mm
Height net735 mm735 mm
Depth net616 mm616 mm

Internal Dimensions

DesignationEDS115-230VEDS115UL-120V
Interior width550 mm550 mm
Interior height550 mm550 mm
Interior depth390 mm390 mm
Unit doors11

Environment-specific data

DesignationEDS115-230VEDS115UL-120V
Energy consumption at 150°C300 Wh/h300 Wh/h

Fixtures

DesignationEDS115-230VEDS115UL-120V
Number of shelves (std./max.)1/51/5
Specifikationer
Varenr. BIN90900020
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9090-0020
CE-godkendt Ja
