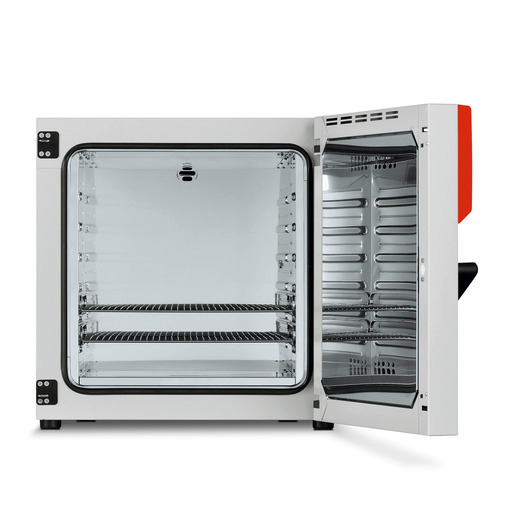

Binder ED115 Drying/heating ch, nat.conv, 300C

Varenr. BIN90100335

Benefits

  • Best energy efficiency on the market.
  • Excellent temporal and spatial temperature accuracy.
  • USB connection for recording data.
  • Temperature range up to +300 °C.
Beskrivelse

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

Benefits

  • Best energy efficiency on the market
  • Excellent temporal and spatial temperature accuracy
  • USB connection for recording data
  • Temperature range up to 300 °C

Important characteristics

  • Temperature range: ambient temperature plus 5 °C to 300 °C
  • Up to 30% lower energy consumption compared to conventional units on the market
  • High temperature accuracy thanks to APT.line technology
  • Natural convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 liters are stackable
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

Performance Data Temperature

DesignationED115-230VED115UL-120V
Temperature range+5 °C above ambient temperature to 300 °C+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C1.5 ± K1.5 ± K
Temperature fluctuation at 150°C0.4 ± K0.4 ± K
Heating up time to 150°C45 min45 min
Recovery time after door was opened for 30 s at 150°C16 min16 min

Air change data

DesignationED115-230VED115UL-120V
Air change rate at 100°C6 x/h6 x/h

Electrical data

DesignationED115-230VED115UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power1,25 kW1,35 kW
Unit fuse6,3 A12,5 A
Phase (Nominal voltage)1~1~

Measures

DesignationED115-230VED115UL-120V
Interior volume114 L114 L
Net weight of the unit (empty)54 kg54 kg
Load per rack30 kg30 kg
Permitted load150 kg150 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

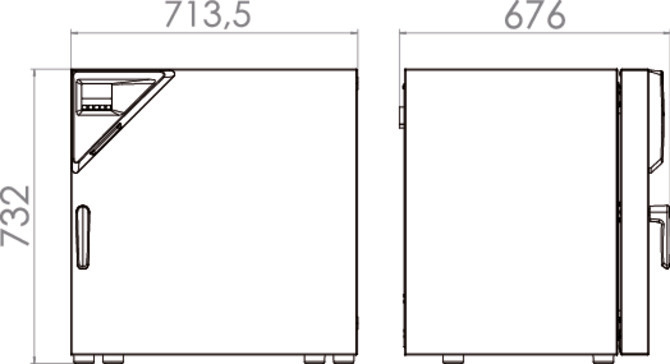

Housing dimensions not incl. fittings and connections

DesignationED115-230VED115UL-120V
Width net710 mm710 mm
Height net705 mm705 mm
Depth net605 mm605 mm

Internal Dimensions

DesignationED115-230VED115UL-120V
Interior width510 mm510 mm
Interior height530 mm530 mm
Interior depth425 mm425 mm
Unit doors11

Environment-specific data

DesignationED115-230VED115UL-120V
Energy consumption at 100°C140 Wh/h140 Wh/h
Energy consumption at 150°C245 Wh/h245 Wh/h

Fixtures

DesignationED115-230VED115UL-120V
Number of shelves (std./max.)2/52/5
Specifikationer
Varenr. BIN90100335
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9010-0335
CE-godkendt Ja
