Binder ED23 Varmeskab, CL, NK, 20 liter

Name: Binder ED23 Varmeskab, CL, NK, 20 liter
Brand: BINDER
SKU: BIN90100190
Price: 17947.50 DKK
Availability: InStock

Varenr. BIN90100190

Benefits

Uniform drying conditions thanks to APT.line technology.
Identical test conditions throughout the chamber interior independent of sample size and quantity.
Outstanding thermal insulation saves operation costs.

Beskrivelse

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

Benefits

Uniform drying conditions thanks to APT.line technology
Identical test conditions throughout the chamber interior independent of sample size and quantity
Outstanding thermal insulation saves operation costs

Important characteristics

Temperature range: room temperature plus 5 °C to 300 °C
APT.line preheating chamber technology
Natural convection
Adjustable exhaust air flap
Controller with timer functions
2 chrome-plated racks
Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Performance Data Temperature

Designation	ED023-230V	ED023-230V-I	ED023UL-120V	ED023UL-120V-I
Temperature range	+5 °C above ambient temperature to 300 °C	+5 °C above ambient temperature to 300 °C	+5 °C above ambient temperature to 300 °C	+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C	2.8 ± K	2.8 ± K	2.8 ± K	2.8 ± K
Temperature fluctuation at 150°C	0.5 ± K	0.5 ± K	0.5 ± K	0.5 ± K
Heating up time to 150°C	28 min	28 min	28 min	28 min
Recovery time after door was opened for 30 s at 150°C	5 min	5 min	5 min	5 min

Air change data

Designation	ED023-230V	ED023-230V-I	ED023UL-120V	ED023UL-120V-I
Air change rate at 150°C	13 x/h	13 x/h	13 x/h	13 x/h

Electrical data

Designation	ED023-230V	ED023-230V-I	ED023UL-120V	ED023UL-120V-I
Rated Voltage	230 V		120 V
	Power frequency	50/60 Hz	50/60 Hz	60 Hz	60 Hz
Nominal power	0,8 kW	0,8 kW	0,8 kW	0,8 kW
Unit fuse	10,0 A	10,0 A	12,5 A	12,5 A
Phase (Nominal voltage)	1~	1~	1~	1~

Measures

Designation	ED023-230V	ED023-230V-I	ED023UL-120V	ED023UL-120V-I
Interior volume	20 L	20 L	20 L	20 L
Net weight of the unit (empty)	27 kg	27 kg	27 kg	27 kg
Load per rack	12 kg	12 kg	12 kg	12 kg
Permitted load	25 kg	25 kg	25 kg	25 kg
Wall clearance back	100 mm	100 mm	100 mm	100 mm
Wall clearance sidewise	50 mm	50 mm	50 mm	50 mm

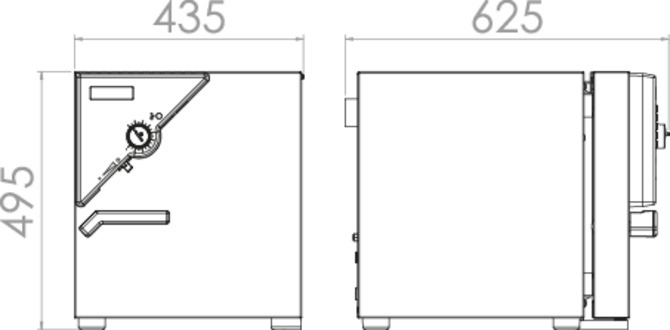

Housing dimensions not incl. fittings and connections

Designation	ED023-230V	ED023-230V-I	ED023UL-120V	ED023UL-120V-I
Width net	435 mm	435 mm	435 mm	435 mm
Height net	495 mm	495 mm	495 mm	495 mm
Depth net	520 mm	520 mm	520 mm	520 mm

Internal Dimensions

Designation	ED023-230V	ED023-230V-I	ED023UL-120V	ED023UL-120V-I
Interior width	222 mm	222 mm	222 mm	222 mm
Interior height	330 mm	330 mm	330 mm	330 mm
Interior depth	300 mm	300 mm	300 mm	300 mm
Unit doors	1	1	1	1

Environment-specific data

Designation	ED023-230V	ED023-230V-I	ED023UL-120V	ED023UL-120V-I
Energy consumption at 150°C	148 Wh/h	148 Wh/h	148 Wh/h	148 Wh/h

Fixtures

Designation	ED023-230V	ED023-230V-I	ED023UL-120V	ED023UL-120V-I
Number of shelves (std./max.)	2/4	2/4	2/4	2/4

Specifikationer

Varenr.	BIN90100190
Antal / pk	1
Enhed	stk
Min. bestilling	1
Leverandørens varenummer	9010-0190
CE-godkendt	Ja
