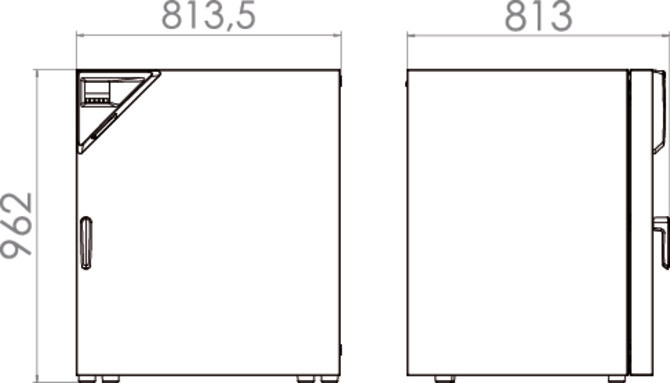

01 abmessungen bd bf ed fd fed260 avantgarde web 670x515 2

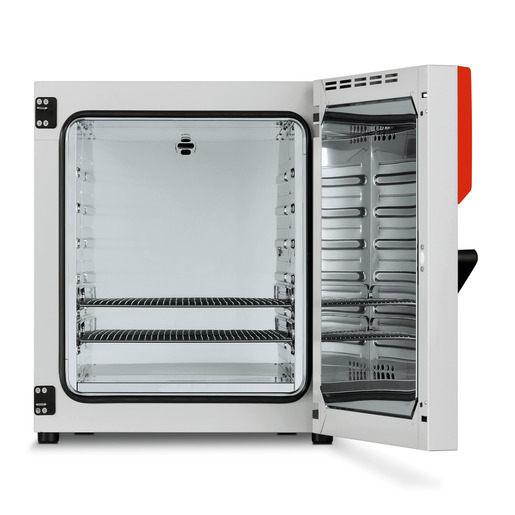

02 ed 260 of web 670x515

Binder ED260 varmeskab, 300°C, 255 L

Varenr. BIN90100339

Benefits

  • Best energy efficiency on the market.
  • Excellent temporal and spatial temperature accuracy.
  • USB connection for recording data.
  • Temperature range up to +300 °C.
Beskrivelse

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

Benefits

  • Best energy efficiency on the market
  • Excellent temporal and spatial temperature accuracy
  • USB connection for recording data
  • Temperature range up to 300 °C

Important characteristics

  • Temperature range: ambient temperature plus 5 °C to 300 °C
  • Up to 30% lower energy consumption compared to conventional units on the market
  • High temperature accuracy thanks to APT.line technology
  • Natural convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 liters are stackable
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

Performance Data Temperature

DesignationED260-230VED260UL-240V
Temperature range+5 °C above ambient temperature to 300 °C+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C1.8 ± K1.8 ± K
Temperature fluctuation at 150°C0.8 ± K0.8 ± K
Heating up time to 150°C50 min50 min
Recovery time after door was opened for 30 s at 150°C20 min20 min

Electrical data

DesignationED260-230VED260UL-240V
Rated Voltage230 V240 V
Power frequency50/60 Hz60 Hz
Nominal power2,25 kW2,45 kW
Unit fuse12,5 A16,0 A
Phase (Nominal voltage)1~1~

Measures

DesignationED260-230VED260UL-240V
Interior volume255 L255 L
Net weight of the unit (empty)85 kg85 kg
Load per rack40 kg40 kg
Permitted load270 kg270 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

Housing dimensions not incl. fittings and connections

DesignationED260-230VED260UL-240V
Width net810 mm810 mm
Height net940 mm940 mm
Depth net760 mm760 mm

Internal Dimensions

DesignationED260-230VED260UL-240V
Interior width610 mm610 mm
Interior height760 mm760 mm
Interior depth550 mm550 mm
Unit doors11

Environment-specific data

DesignationED260-230VED260UL-240V
Energy consumption at 100°C195 Wh/h195 Wh/h
Energy consumption at 150°C355 Wh/h355 Wh/h

Fixtures

DesignationED260-230VED260UL-240V
Number of shelves (std./max.)2/82/8
Specifikationer
Varenr. BIN90100339
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9010-0339
CE-godkendt Ja
