Binder ED720 varmeskab, 300°C, 743 L

Varenr. BIN90100341

Benefits

  • Best energy efficiency on the market.
  • Excellent temporal and spatial temperature accuracy.
  • USB connection for recording data.
  • Temperature range up to +300 °C.
Beskrivelse

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

Benefits

  • Best energy efficiency on the market
  • Excellent temporal and spatial temperature accuracy
  • USB connection for recording data
  • Temperature range up to 300 °C

Important characteristics

  • Temperature range: ambient temperature plus 5 °C to 300 °C
  • Up to 30% lower energy consumption compared to conventional units on the market
  • High temperature accuracy thanks to APT.line technology
  • Natural convection
  • Controller with LCD display
  • Electromechanical control of the exhaust air flap
  • 2 chrome-plated racks
  • Units up to 115 liters are stackable
  • Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
  • Ergonomic handle design
  • USB port for recording data

Performance Data Temperature

DesignationED720-400V
Temperature range+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C3.2 ± K
Temperature fluctuation at 150°C0.8 ± K
Heating up time to 150°C85 min
Recovery time after door was opened for 30 s at 150°C25 min

Air change data

DesignationED720-400V
Air change rate at 100°C2 x/h

Electrical data

DesignationED720-400V
Rated Voltage400 V
Power frequency50/60 Hz
Nominal power4,1 kW
Unit fuse16,0 A
Phase (Nominal voltage)3~

Measures

DesignationED720-400V
Interior volume743 L
Net weight of the unit (empty)169 kg
Load per rack45 kg
Permitted load315 kg
Wall clearance back160 mm
Wall clearance sidewise100 mm

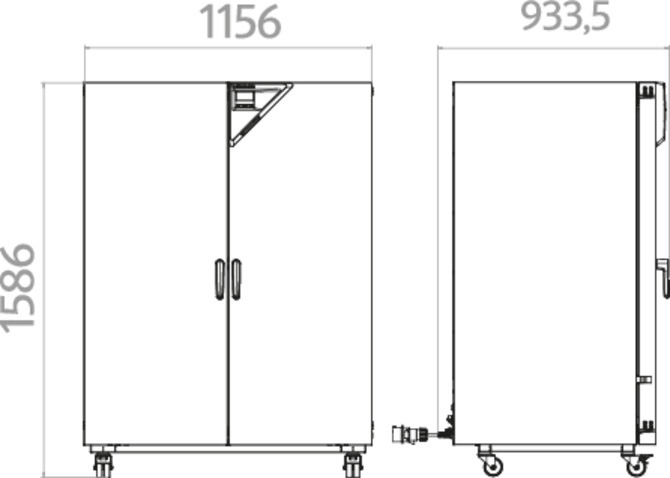

Housing dimensions not incl. fittings and connections

DesignationED720-400V
Width net1,165 mm
Height net1,590 mm
Depth net870 mm

Internal Dimensions

DesignationED720-400V
Interior width960 mm
Interior height1,280 mm
Interior depth605 mm
Inner doors2
Unit doors2

Environment-specific data

DesignationED720-400V
Energy consumption at 100°C380 Wh/h
Energy consumption at 150°C700 Wh/h

Fixtures

DesignationED720-400V
Number of shelves (std./max.)2/16
Specifikationer
Varenr. BIN90100341
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9010-0341
CE-godkendt Ja
