Binder Inkubator BD-S11, 118 liter, N, 70 gr.

Varenr. BIN90900022

Benefits

  • Easy handling
  • Accurate temperature control
  • Simple and ergonomic door opening
Beskrivelse

The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to incubation. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.

Benefits

  • Easy handling
  • Accurate temperature control
  • Simple and ergonomic door opening

Important characteristics

  • Temperature range: ambient temperature +5 °C to 70 °C
  • APT.line preheating chamber technology
  • Natural convection
  • Adjustable exhaust air flap
  • Controller with timer function
  • Inner door made of tempered safety glass
  • 1 chrome-plated rack, incl. shelf supports
  • Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm

Performance Data Temperature

DesignationBDS115-230VBDS115UL-120V
Temperature range+5 °C above ambient temperature to 70 °C+5 °C above ambient temperature to 70 °C
Temperature uniformity at 37°C0.5 ± K0.5 ± K
Temperature fluctuation at 37°C0.3 ± K0.3 ± K
Heating up time to 37°C250 min250 min
Recovery time after door was opened for 30 s at 37°C15 min15 min

Electrical data

DesignationBDS115-230VBDS115UL-120V
Rated Voltage230 V120 V
Power frequency50/60 Hz60 Hz
Nominal power0,35 kW0,35 kW
Unit fuse6,3 A6,3 A
Phase (Nominal voltage)1~1~

Measures

DesignationBDS115-230VBDS115UL-120V
Interior volume118 L118 L
Net weight of the unit (empty)47 kg47 kg
Load per rack20 kg20 kg
Permitted load75 kg75 kg
Wall clearance back160 mm160 mm
Wall clearance sidewise100 mm100 mm

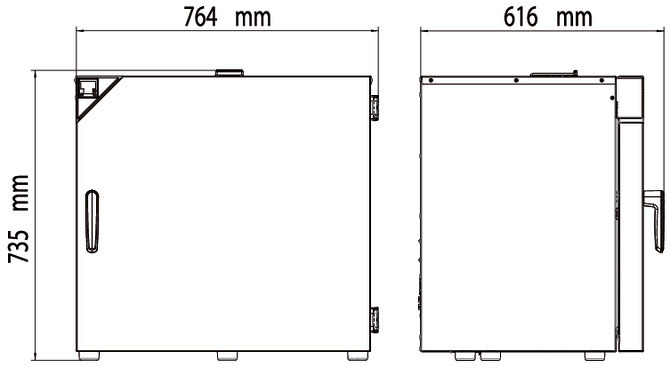

Housing dimensions not incl. fittings and connections

DesignationBDS115-230VBDS115UL-120V
Width net764 mm764 mm
Height net735 mm735 mm
Depth net616 mm616 mm

Internal Dimensions

DesignationBDS115-230VBDS115UL-120V
Interior width550 mm550 mm
Interior height550 mm550 mm
Interior depth390 mm390 mm
Inner doors11
Unit doors11

Environment-specific data

DesignationBDS115-230VBDS115UL-120V
Energy consumption at 37°C25 Wh/h25 Wh/h

Fixtures

DesignationBDS115-230VBDS115UL-120V
Number of shelves (std./max.)1/51/5
Specifikationer
Varenr. BIN90900022
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9090-0022
Type Udstyr
CE-godkendt Ja
