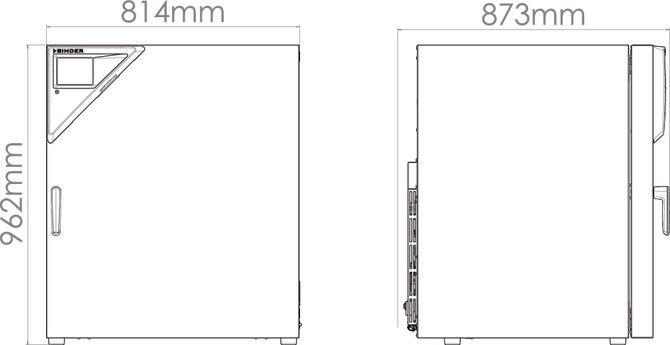

02 abmessungen m260 9010 0373 web 670x515

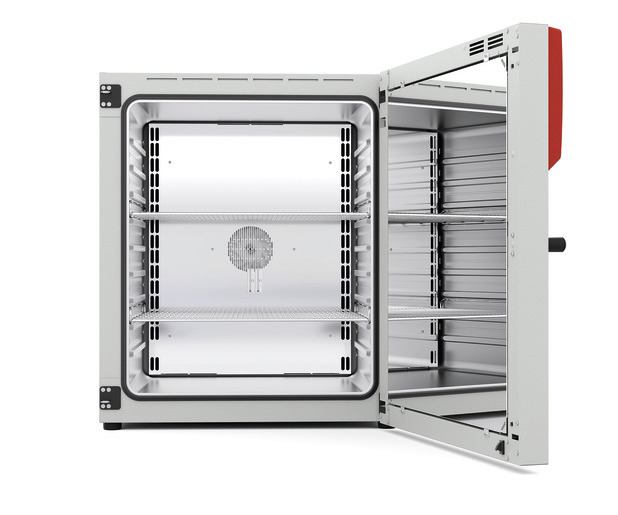

03 m 260 of web 670x515

M260-400V, Standard, Series M Avantgarde.Line - Dr

Varenr. BIN90100373

Benefits

  • Uniform drying conditions thanks to APT.line technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs
  • Advanced programming options
Beskrivelse

With a maximum of +300 °C and various programming options the M series material test chambers are ideal for material and aging tests. With a high air flow, the powerful fans ensure rapid heating.

Benefits

  • Uniform drying conditions thanks to APT.line technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs
  • Advanced programming options

Important characteristics

  • Temperature range: +23°C above ambient temperature to +300°C
  • High temperature accuracy thanks to APT.line technology with increased heating output
  • Reinforced fan with adjustable speed
  • Electromechanical control of the exhaust air flap
  • Intuitive touchscreen controller with time-segment and real-time programming
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
  • Failsafe function - backup sensor Pt 100
  • Computer interface: Ethernet
  • Internal data logger, measured values can be read out in open format via USB

Performance Data Temperature

DesignationM260-400V
Temperature range+14 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C1.5 ± K
Temperature fluctuation at 150°C0.4 ± K
Heating up time to 150°C13 min
Recovery time after door was opened for 30 s at 150°C6 min

Air change data

DesignationM260-400V
Air change rate at 100°C65 x/h

Electrical data

DesignationM260-400V
Rated Voltage400 V
Power frequency50/60 Hz
Nominal power3,1 kW
Unit fuse16,0 A
Phase (Nominal voltage)3~

Measures

DesignationM260-400V
Interior volume256 L
Net weight of the unit (empty)86 kg
Load per rack40 kg
Permitted load270 kg
Wall clearance back160 mm
Wall clearance sidewise100 mm

Housing dimensions not incl. fittings and connections

DesignationM260-400V
Width net810 mm
Height net962 mm
Depth net786 mm

Internal Dimensions

DesignationM260-400V
Interior width650 mm
Interior height780 mm
Interior depth505 mm
Unit doors1

Environment-specific data

DesignationM260-400V
Sound-pressure level50 dB(A)
Energy consumption at 100°C370 Wh/h
Energy consumption at 150°C560 Wh/h

Fixtures

DesignationM260-400V
Number of shelves (std./max.)2/8
Specifikationer
Varenr. BIN90100373
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9010-0373
CE-godkendt Ja
