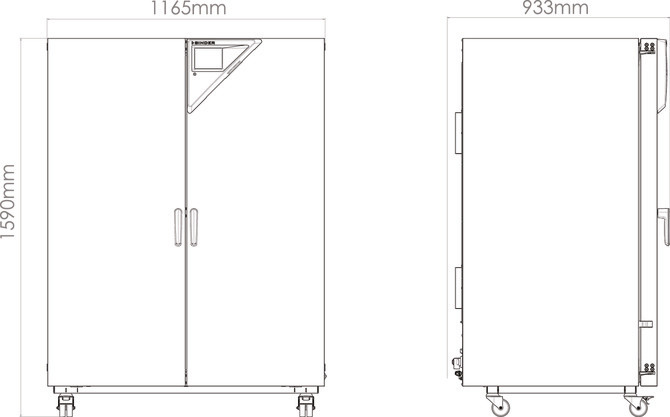

02 abmessungen m720 9010 0374 web 670x515

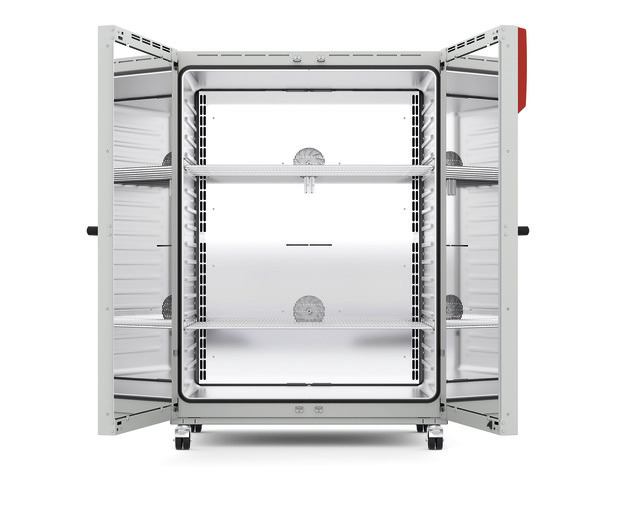

03 m 720 of al web 670x515

M720-400V, Standard, Series M Avantgarde.Line - Dr

Varenr. BIN90100374

Benefits

  • Uniform drying conditions thanks to APT.line technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs
  • Advanced programming options
Beskrivelse

With a maximum of +300 °C and various programming options the M series material test chambers are ideal for material and aging tests. With a high air flow, the powerful fans ensure rapid heating.

Benefits

  • Uniform drying conditions thanks to APT.line technology
  • Identical test conditions throughout the chamber interior independent of sample size and quantity
  • Outstanding thermal insulation saves operation costs
  • Advanced programming options

Important characteristics

  • Temperature range: +23°C above ambient temperature to +300°C
  • High temperature accuracy thanks to APT.line technology with increased heating output
  • Reinforced fan with adjustable speed
  • Electromechanical control of the exhaust air flap
  • Intuitive touchscreen controller with time-segment and real-time programming
  • 2 chrome-plated racks
  • Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
  • Failsafe function - backup sensor Pt 100
  • Computer interface: Ethernet
  • Internal data logger, measured values can be read out in open format via USB

Performance Data Temperature

DesignationM720-400V
Temperature range+14 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C2 ± K
Temperature fluctuation at 150°C0.6 ± K
Heating up time to 150°C14 min
Recovery time after door was opened for 30 s at 150°C6 min

Air change data

DesignationM720-400V
Air change rate at 100°C40 x/h

Electrical data

DesignationM720-400V
Rated Voltage400 V
Power frequency50/60 Hz
Nominal power6 kW
Unit fuse16,0 A
Phase (Nominal voltage)3~

Measures

DesignationM720-400V
Interior volume735 L
Net weight of the unit (empty)170 kg
Load per rack45 kg
Permitted load315 kg
Wall clearance back160 mm
Wall clearance sidewise100 mm

Housing dimensions not incl. fittings and connections

DesignationM720-400V
Width net1,160 mm
Height net1,590 mm
Depth net816 mm

Internal Dimensions

DesignationM720-400V
Interior width1,000 mm
Interior height1,300 mm
Interior depth565 mm
Unit doors2

Environment-specific data

DesignationM720-400V
Sound-pressure level53 dB(A)
Energy consumption at 100°C625 Wh/h
Energy consumption at 150°C1,025 Wh/h

Fixtures

DesignationM720-400V
Number of shelves (std./max.)2/16
Specifikationer
Varenr. BIN90100374
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9010-0374
CE-godkendt Ja
