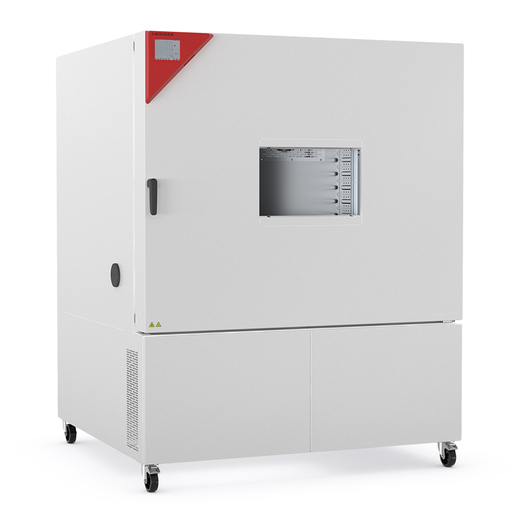

MK1020-400V, Standard, Series MK - Dynamic climate

Varenr. BIN90200407

Benefits

  • Homogeneous climate conditions thanks to APT.line technology.
  • Comprehensive programming and data acquisition.
  • Large heated viewing window.
Beskrivelse

The BINDER MK series chamber is suitable for all heat and cold tests between -40 °C and 180 °C. The MK is a clever alternative to complex individual solutions for cyclical temperature tests.

Benefits

  • Homogeneous climate conditions thanks to APT.line technology
  • Comprehensive programming and data acquisition
  • Large heated viewing window

Important characteristics

  • Temperature range: -40 °C to +180 °C
  • APT.line preheating chamber technology
  • Programmable condensation protection for test material
  • Heated viewing window with LED interior lighting
  • BINDER Multi Management Software APT-COM Basic Edition
  • Troubleshooting system with visual and audible alarms
  • Intuitive touchscreen controller with time-segment and real-time programming
  • Internal data logger, measured values can be read out in open format via USB
  • Unit self-test for comprehensive status analysis
  • Access port with silicone plug, 50 mm, left
  • Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
  • 4 castors, two with brakes
  • Computer interface: Ethernet
  • Adjustable ramp function
  • Integrated chart recorder
  • Real-time clock
  • 1 stainless steel rack
  • Inner chamber made of stainless steel
  • CFC-free refrigerant R-452A
  • Cooling with compressor cooling unit

Performance Data Temperature

DesignationMK1020-400VMK1020-480V-C
Temperature range-40...180 °C-40...180 °C
Temperature uniformity dependent on set value0.1...1.8 ± K0.1...1.8 ± K
Temperature fluctuation dependent on set value0.1...0.5 ± K0.1...0.5 ± K

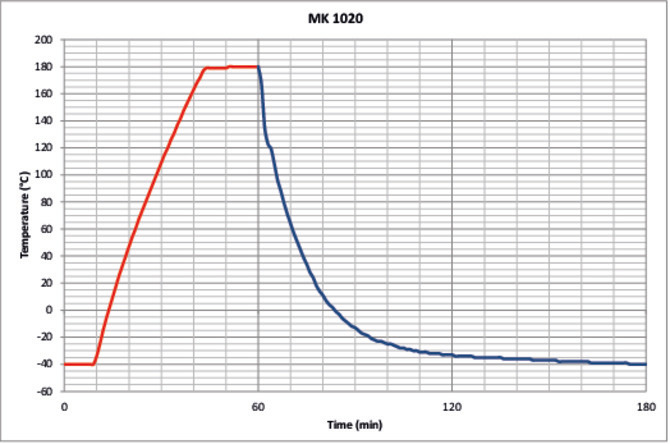

Average heating-up rate according to IEC 60068-3-55.5 K/min5.5 K/min
Cooling down time from 180°C to -40°C120 min120 min
Average cooling down time according to IEC 60068-3-55 K/min5 K/min

Electrical data

DesignationMK1020-400VMK1020-480V-C
Rated Voltage400 V480 V
Power frequency50 Hz60 Hz
Nominal power11,5 kW11,5 kW
Unit fuse32,0 A32,0 A
Phase (Nominal voltage)3~3~

Measures

DesignationMK1020-400VMK1020-480V-C
Interior volume991 L991 L
Net weight of the unit (empty)621 kg621 kg
Load per rack40 kg40 kg
Permitted load200 kg200 kg
Wall clearance back300 mm300 mm
Wall clearance sidewise200 mm200 mm

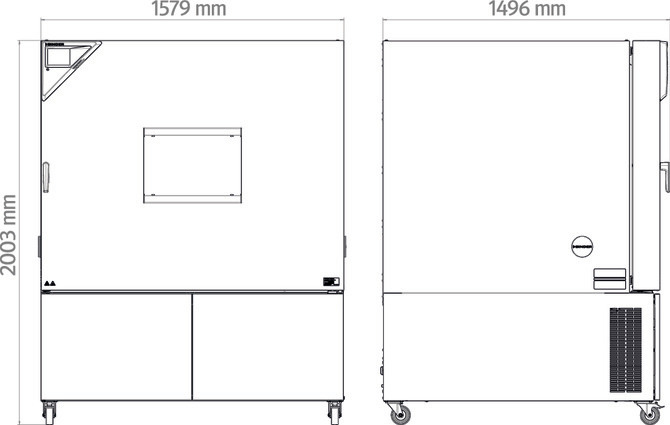

Housing dimensions not incl. fittings and connections

DesignationMK1020-400VMK1020-480V-C
Width net1,580 mm1,580 mm
Height net2,005 mm2,005 mm
Depth net1,480 mm1,480 mm

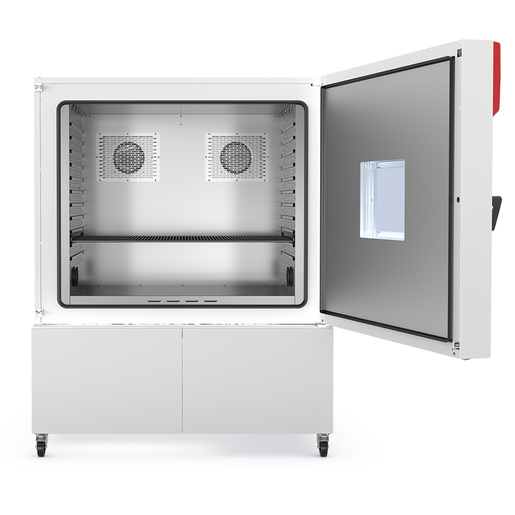

Internal Dimensions

DesignationMK1020-400VMK1020-480V-C
Interior width1,200 mm1,200 mm
Interior height1,020 mm1,020 mm
Interior depth810 mm810 mm
Viewing window width508 mm508 mm
Viewing window height300 mm300 mm
Unit doors11

Environment-specific data

DesignationMK1020-400VMK1020-480V-C
Sound-pressure level65 dB(A)65 dB(A)
Energy consumption at 20°C1,500 Wh/h1,500 Wh/h

Fixtures

DesignationMK1020-400VMK1020-480V-C
Number of shelves (std./max.)1/111/11
Specifikationer
Varenr. BIN90200407
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9020-0407
CE-godkendt Ja
