IKA MATRIX Orbital Delta Plus shaker, 0-3000 rpm

Varenr. IKA0030000731
Beskrivelse

The all-rounder Matrix Orbital Delta plus mixes, heats and cools reliably with variable inserts.
Whether blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays - reaction vials and plates with even the smallest volumes are reliably mixed and tempered in all laboratory applications. No cross-contamination and an optimal mixing result.
In addition, Matrix Orbital Delta plus comes with numerous user-friendly features:

  • Large and clear display with a convenient menu structure allows for an intuitive operation
  • Firm quick-release fastener for quick and easy changing of the inserts/attachments as well as an automatic attachment detection
  • Quick and effective mixing of liquids with up to 3,000 rpm and 3 mm shaker diameter
  • Reduced waiting time through fast heating and cooling rates of up to 6 °C/min (heating) or 2.5 °C/min at set-point temperature above the ambient temperature (cooling, 0.5 °C/min at set-point temperature between ambient temperature and 15 °C below ambient temperature)
  • Two different speed modes for sample-specific temperature control
  • Automatic performance of mixing, heating and cooling tasks through programmable ramps

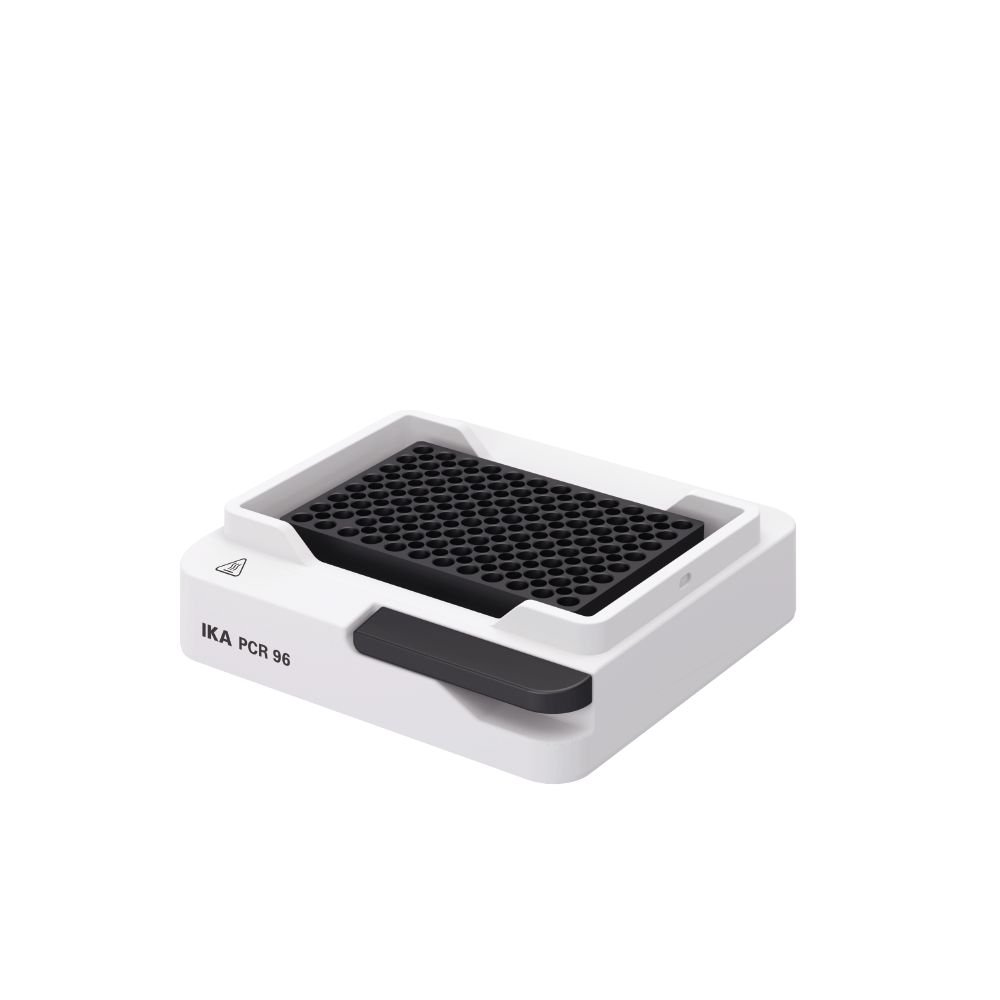

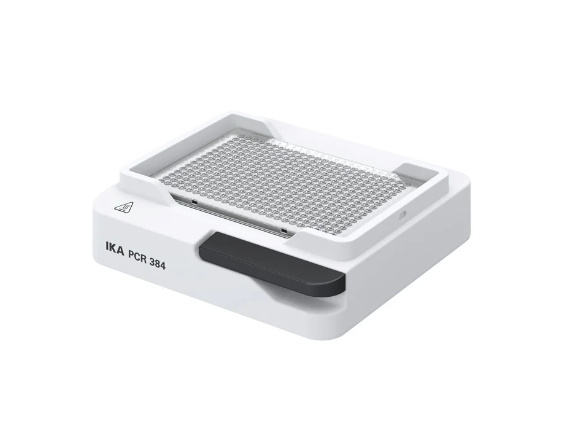

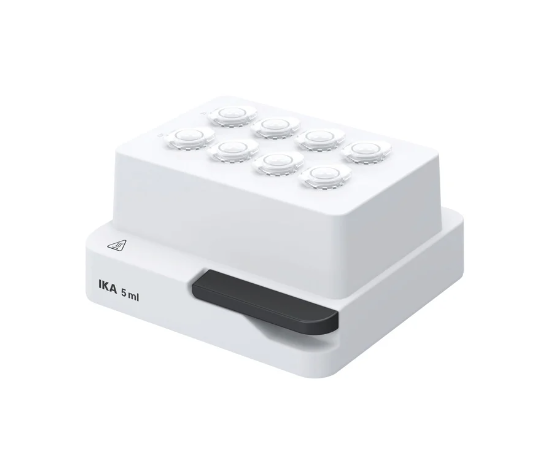

  • Wide range of inserts for reaction vessels and plates
  • Intelligent speed adaption to insert, attachment and filling volume
  • Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
    The device is ideally suited for numerous applications in laboratories, such as:
  • Tempering / mixing of samples
  • Synthesis of cDNA
  • Enzyme-catalysed linking of RNA or DNA (ligation)
  • Lysis reactions
  • Structural change of DNA, RNA and proteins (denaturation)

Type of movement: orbital
Shaking stroke [mm]: 3
Maximun load [kg]: 0.3
Motor rating output [W]: 88
Permissible ON time [%]: 100
Speed min (adjustable) [rpm]: 300
Speed range [rpm]: 0 - 3000
Speed display: TFT
Speed deviation [±rpm]: 30
Speed control: 10 RPM Steps
Timer: yes
Timer display: TFT
Time setting min. : 1
Time setting max. [min]: 6000
Operating mode: timer, continuous and program operation
Touch function: no
Shaking table lock: no
Working with microtiter plates: yes
Working temperature min. [°C]: room temp. -15
Temperature setting range min. [°C]: 1
Heating temperature max. [°C]: 100
Heat output [W]: 100
Heat control: TFT
Set temperature resolution [±°C]: 1
Temperature control accuracy [±°C]: 0.5
Temperature stability [°C]: 0.5
Temperature homogenity [±°C]: 0.5
Heating rate [°C/min]: 6
Temperature display: yes
Cooling Rate [°C/min]: 0.8
Cooling Power [W]: 72
Number of exchangable attachments: 10
Dimensions (W x H x D) [mm]: 216 x 127 x 351
Weight [kg]: 10
Permissible ambient temperature [°C]: 5 - 40
Permissible relative humidity [%]: 80
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: yes
Bluetooth interface: no
Analog output: no
Voltage [V]: 100 - 240
Frequency [Hz]: 50/60
Power input [W]: 230
Power input max. [W]: 230
Fuse: 2x T4A 250V

Specifikationer
Varenr. IKA0030000731
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0030000731
Type Orbital | Varme
CE-godkendt Ja
