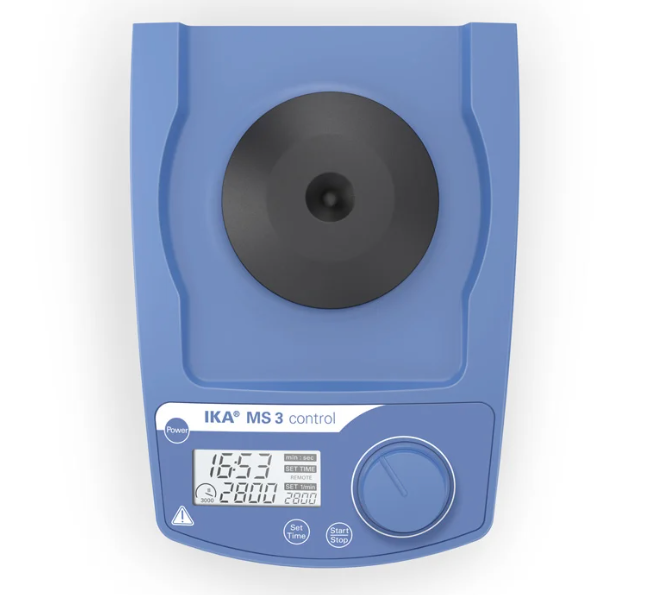

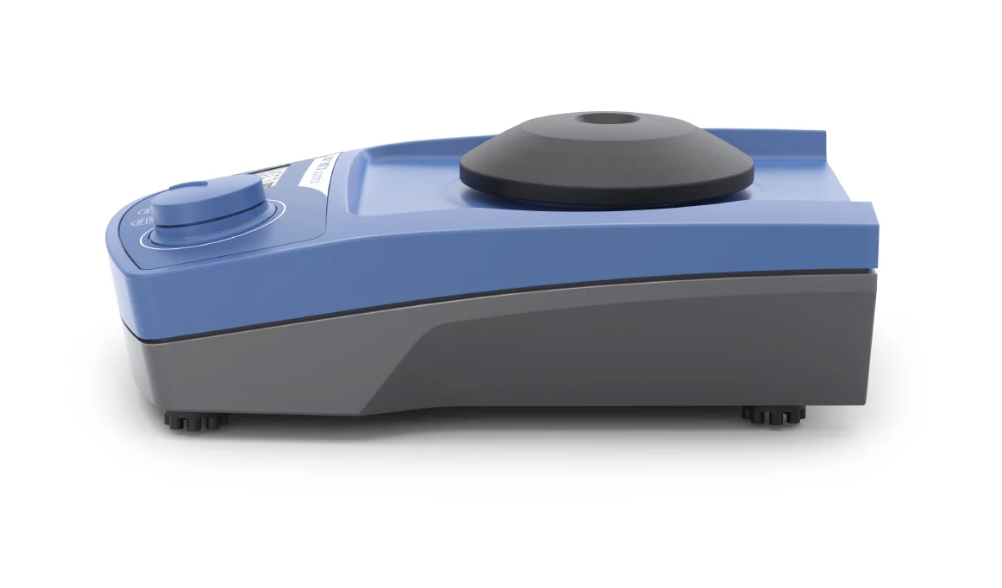

IKA MS 3 control

Varenr. IKA0020016017

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

Beskrivelse

MS 3 control

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

  • Wide range of attachments
  • Attachment detection
  • Timer with countdown function
  • Stable in all speed ranges
  • Sturdy zinc die cast casing
  • USB connection for remote control
  • Continuous or touch operation (with standard attachment)

Two operating modes:
Mode A (safe mode with attachment detection):
The maximum speed of 3,000 rpm is only reached with the standard attachment in touch mode. When using other attachments the speed is limited to 1,300 rpm.

Mode B (without attachment detection):
A speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual).

Scope of delivery

  • MS 3 control
  • MS 3.1 Standard attachment
  • MS 3.3 Universal attachment
  • MS 3.4 Microtiter attachment
  • MS 1.21 One-hand insert
  • MS 1.32 Test tube insert

Technical Data

Type of movementorbital
Shaking stroke4.5 mm
Permissible shaking weight (incl. attachment)0.5 kg
Motor rating input10 W
Motor rating output8 W
Permissible ON time100 %
Speed min (adjustable)100 rpm
Speed range100 - 3000 rpm
Speed displayLCD
Speed deviation1 %
Timeryes
Timer displayLCD
Time setting min.1 s
Time setting max.3599 min
Deviation device clock max.1 %
Operating modetimer and continuous operation
Touch functionyes
Working with microtiter platesyes
Number of microtiter plates1
Dimensions (W x H x D)148 x 63 x 205 mm
Weight3.16 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
RS 232 interfaceyes
Voltage100 - 240 V
Frequency50/60 Hz
Power input20 W
DC Voltage24 V=
Current consumption800 mA
Specifikationer
Varenr. IKA0020016017
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0020016017
Type Rysteapparater
CE-godkendt Ja
