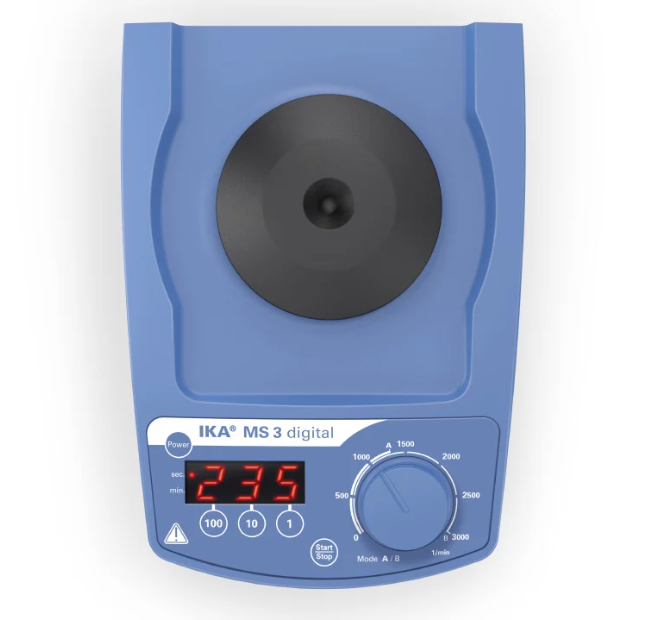

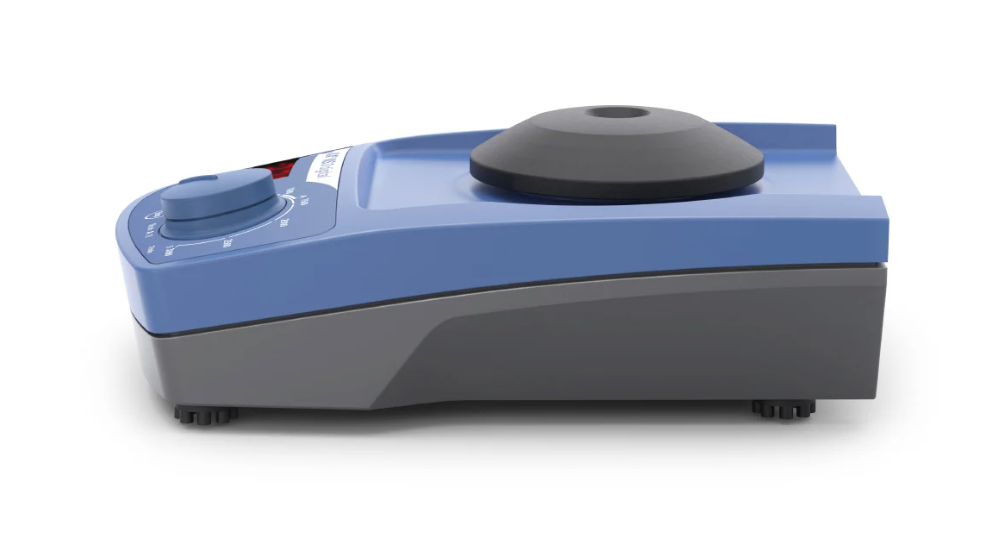

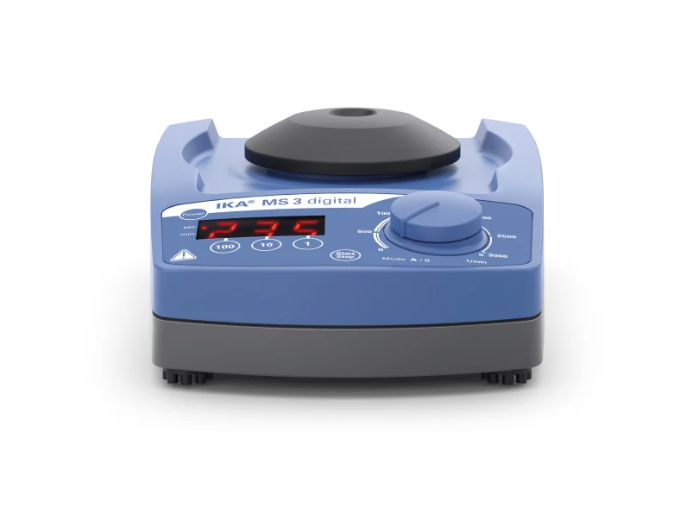

IKA MS 3 digital shaker

Varenr. IKA0003319000

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

Beskrivelse

MS 3 digital

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

  • Wide range of attachments
  • Attachment detection
  • Timer with countdown function
  • Continuous or touch operation (with standard attachment)
  • Two operating modes:

Mode A (safe mode with attachment detection)
the maximum speed of 3.000 rpm is only reached with the standard attachment in
touch mode. When using other attachments the speed is limited to 1.300 rpm.
Mode B (without attachment detection)
A speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual).

  • Stable in all speed ranges
  • Sturdy zinc die cast casing

Scope of delivery

  • MS 3 digital
  • MS 3.1 Standard attachment
  • MS 3.3 Universal attachment
  • MS 3.4 Microtiter attachment
  • MS 1.21 One-hand insert
  • MS 1.32 Test tube insert

Technical Data

Type of movementorbital
Shaking stroke4.5 mm
Permissible shaking weight (incl. attachment)0.5 kg
Motor rating input10 W
Motor rating output8 W
Permissible ON time100 %
Speed min (adjustable)200 rpm
Speed range0 - 3000 rpm
Speed displayscale
Timeryes
Timer display7 segment LED
Time setting min.1 s
Time setting range1 - 999 min
Operating modetimer and continuous operation
Touch functionyes
Working with microtiter platesyes
Number of microtiter plates1
Dimensions (W x H x D)148 x 63 x 205 mm
Weight2.9 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage100 - 240 V
Frequency50/60 Hz
Power input20 W
DC Voltage24 V=
Current consumption800 mA
Specifikationer
Varenr. IKA0003319000
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0003319000
Type Rysteapparater
CE-godkendt Ja
