IKA T 65 digital ULTRA-TURRAX, homogenisator

Varenr. IKA0004234500

Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations with digital speed display. It offers a wide speed range from 1000 - 9,500 rpm that enables users to work at high circumferential speeds even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

Beskrivelse

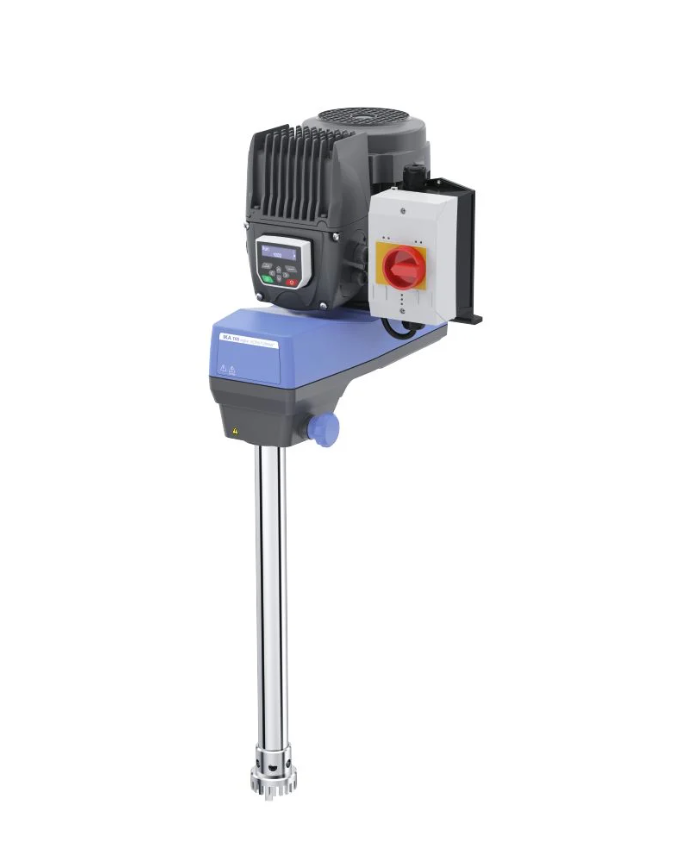

T 65 digital ULTRA-TURRAX®

The images do not correspond to scope of delivery.

Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations with digital speed display. It offers a wide speed range from 1000 - 9,500 rpm that enables users to work at high circumferential speeds even with small rotor diameters. Three rotor-stator configurations guarantee a wide range of applications. Reproducible operations due to constant speed even with changes in viscosities.

  • Digital speed display
  • Electronic speed control
  • Electronic overload protection
  • Plug-in connectors facilitate exchange of dispersing elements
  • Optional stainless steel dispersing elements for use under vacuum and pressure
  • Error code display
  • Mains cable (2.5 m) and SI 400 safety switch are available as accessories (not included with delivery)

The device requires a 3-phase electricity supply in order to operate. The connection of the unit to the power supply must be done by a qualified electrician. Wiring diagrams are included in the manual for reference.

Scope of delivery

  • T 65 digital ULTRA-TURRAX®
  • Rotor wrench
  • Hook wrench
  • Shaft wrench
  • Cable gland for switch cable (2 pcs.)
  • Hexagon L-wrench

Technical Data

Motor rating input2600 W
Motor rating output2200 W
Volume range (H2O)2 - 50 l
Viscosity max.5000 mPas
Speed range1000 - 9500 rpm
Speed deviation3 %
Speed adjustmentstepless
Speed display7 segment LED
Noise without element75 dB(A)
Process typebatch
Dimensions (W x H x D)300 x 420 x 400 mm
Weight35 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 54
Voltage3 x 400 V
Frequency50/60 Hz
Power input2600 W
Specifikationer
Varenr. IKA0004234500
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0004234500
CE-godkendt Ja
