Immersion cylinder, brass, 1000 ml, hxØ 438x75 mm

Varenr. BUR53657000
Beskrivelse

Immersion cylinder for sampling crude oil, liquid mineral oil products, fuels, special and test fuels, fuel oils,
petroleum and liquid lubricants in Explosion Categories IIA, IIB and IIC. Completely made from non-spark
producing materials, nickel-plated.

Screw-off top enables easy cleaning
High weight (4.1 kg) for fast lowering
Robust handle
1000 ml contents
Height with handles 438 mm

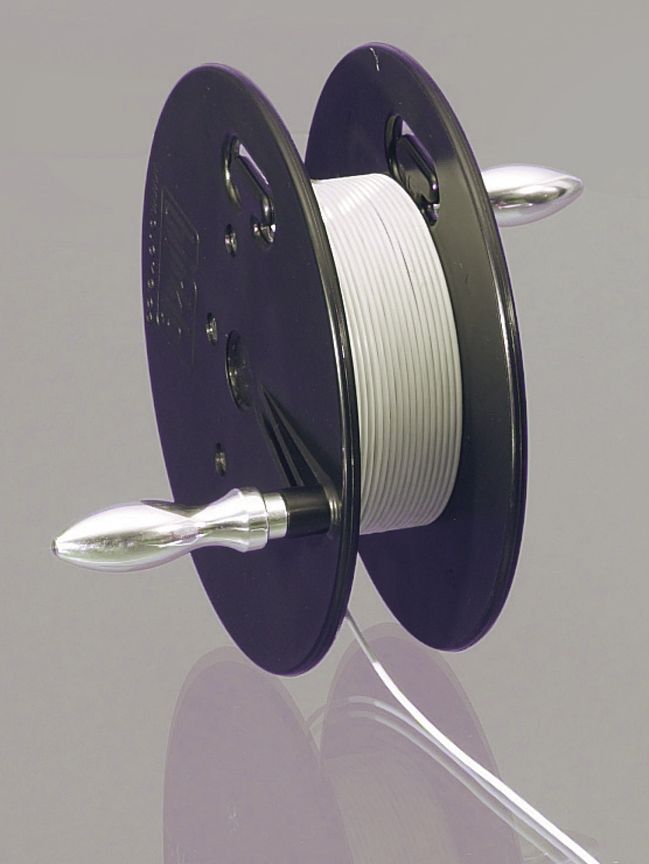

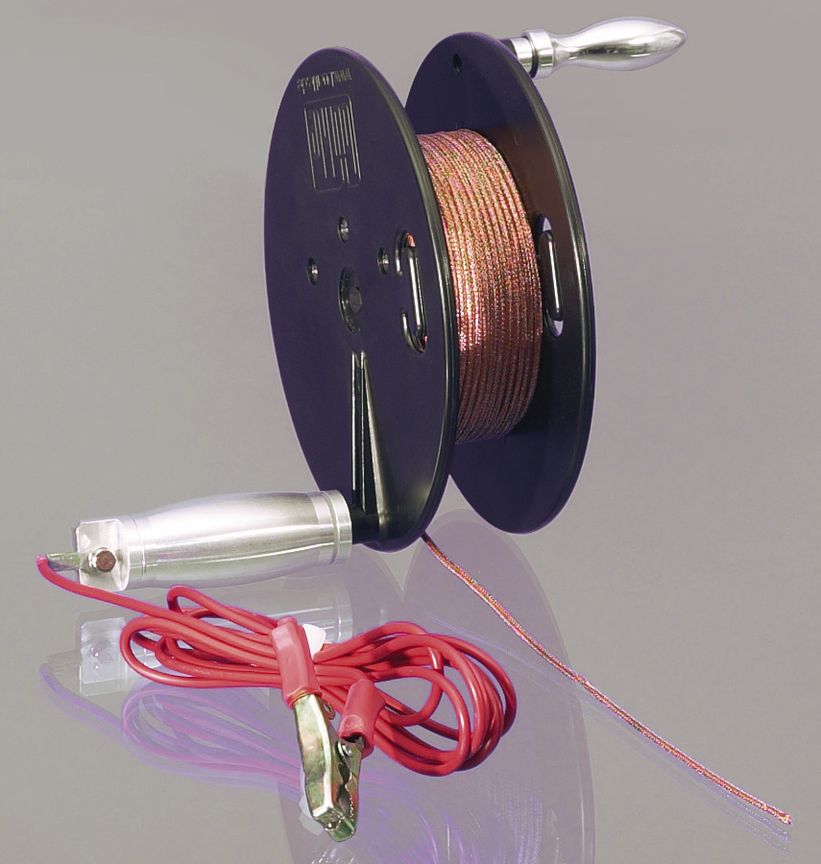

Please order the appropriate lowering cable at the same time (page 116)
Tested for use in the Ex protection zone 0

Use
Point sampling

  1. Two lowering cables are required for this (bearer cable and hauling cable).
  2. Lower the immersion cylinder to the required depth.
  3. When the target has been reached, pull on the hauling cable, the valve opens.
  4. The sample flows into the bottle.
  5. Release the hauling cable. The valve closes. Pull the cylinder back on the bearer cable.
  6. Empty the cylinder via the valve at the bottom.

Soil sample

  1. Lower the immersion cylinder on the cable to the ground.
  2. The valve opens automatically because of the immersion cylinders own weight.
  3. The sample flows into the cylinder.
  4. Pull the cylinder back on the cable, the valve closes independently.
  5. Empty the cylinder via the valve at the bottom.
Specifikationer
Varenr. BUR53657000
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 5365-7000
UNSPSC 41123401
Type Flydende/Viskøs
Type 2 Bægre
Volumen 1 liter
Materiale Messing
Udv. diam. (mm) 75
Fødevaregodkendt Nej
Bemærkning Assessment of Ignition Risks, usable in: Zones 0 and 1. Explosion groups II A, II B, II C. Produced according to DIN norm
