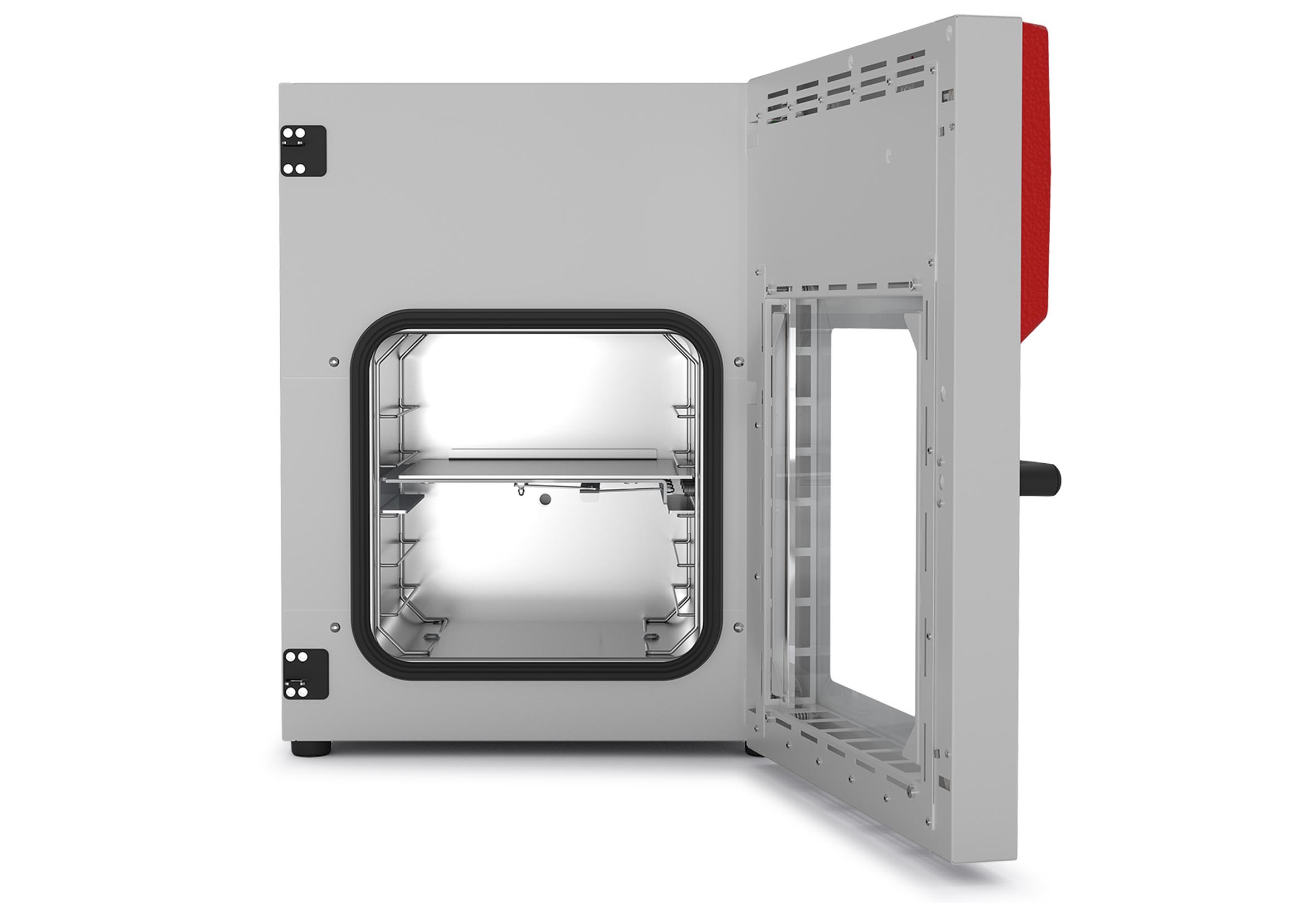

Binder VD56 Vakuumtørreskab, N-FS, 55 liter

Varenr. BIN96300002

Benefits

  • Fast, gentle drying.
  • Optimum heat transfer through large thermal conducting plates.
  • Safe work thanks to proven safety concept.
  • Also option of modular complete system with vacuum pump and pump chamber.
Beskrivelse

BINDERs VD series vacuum drying chambers deliver impressive performance through their precise temperature control and gentle drying. The patented expansion rack technology from BINDER also optimizes heat transfer. The shelves can be repositioned for flexible placement and the interior of the chamber is easy to clean.

Benefits

  • Fast, gentle drying
  • Optimum heat transfer through large thermal conducting plates
  • Safe work thanks to proven safety concept
  • Also option of modular complete system with vacuum pump and pump chamber

Important characteristics

  • Temperature range: ambient temperature +9 °C to +220 °C
  • Controller with digital display of pressure and temperature
  • Program-controlled drying monitoring with automatic ventilation at end of process
  • Internal data logger, measured values can be read out in open format via USB
  • 1 aluminum expansion rack, can be custom-positioned
  • Inert gas connection
  • Shatterproof, spring-mounted safety glass panel
  • Large viewing window with option of interior lighting
  • Computer interface: Ethernet
  • 2 relay outputs, 24 V DC (max. 0.4 A)

Optional equipment

  • Touchscreen Controller - Graphical display of main process parameter
  • Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
  • Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
  • Universal ventilation - Selection of different ventilation by air or inert gas
  • Universal access port DN 40 - for the introduction of external measuring devices
  • Multi Management Software APT-COM - Manage, record and document device parameters
  • Services - extensive services ensure correct device function

Performance Data Temperature

DesignationVD056-230VVD056UL-120V
Temperature range+9 °C above ambient temperature to 220 °C+9 °C above ambient temperature to 220 °C
Temperature uniformity at 100°C1.2 ± K1.2 ± K
Temperature fluctuation at 100°C0.1 ± K0.1 ± K
Heating up time to 100°C80 min80 min

Vacuum Data

DesignationVD056-230VVD056UL-120V
Leckrate0,01 bar/h0,01 bar/h

Electrical data

DesignationVD056-230VVD056UL-120V
Rated Voltage200...230 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power1,4 kW1,4 kW
Unit fuse8,0 A16,0 A
Phase (Nominal voltage)1~1~

Connections

DesignationVD056-230VVD056UL-120V
Vacuum connection with small flange16 DN mm16 DN mm
Measuring access port with small flange16 DN mm16 DN mm
Compressed air connection for pressure-encapsulation5 NW5 NW

Measures

DesignationVD056-230VVD056UL-120V
Interior volume55 L55 L
Net weight of the unit (empty)96 kg96 kg
Load per rack20 kg20 kg
Permitted load60 kg60 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise70 mm70 mm

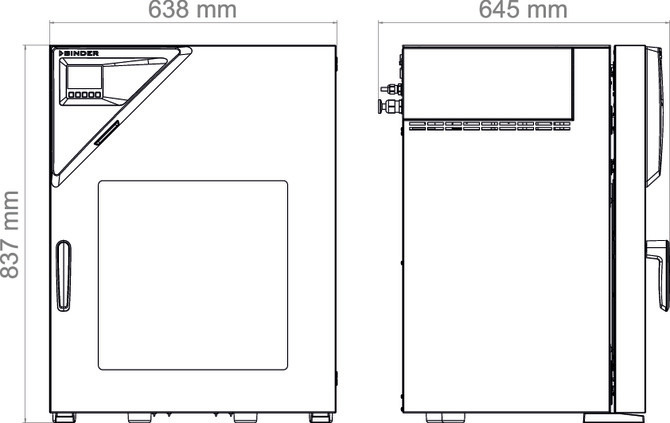

Housing dimensions not incl. fittings and connections

DesignationVD056-230VVD056UL-120V
Width net638 mm638 mm
Height net815 mm815 mm
Depth net461 mm461 mm

Internal Dimensions

DesignationVD056-230VVD056UL-120V
Interior width400 mm400 mm
Interior height400 mm400 mm
Interior depth343 mm343 mm
Viewing window width420 mm420 mm
Viewing window height420 mm420 mm
Unit doors11

Environment-specific data

DesignationVD056-230VVD056UL-120V
Sound-pressure level40 dB(A)40 dB(A)
Energy consumption at 100°C180 Wh/h180 Wh/h

Fixtures

DesignationVD056-230VVD056UL-120V
Number of shelves (std./max.)1/51/5
Specifikationer
Varenr. BIN96300002
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9630-0002
CE-godkendt Ja
