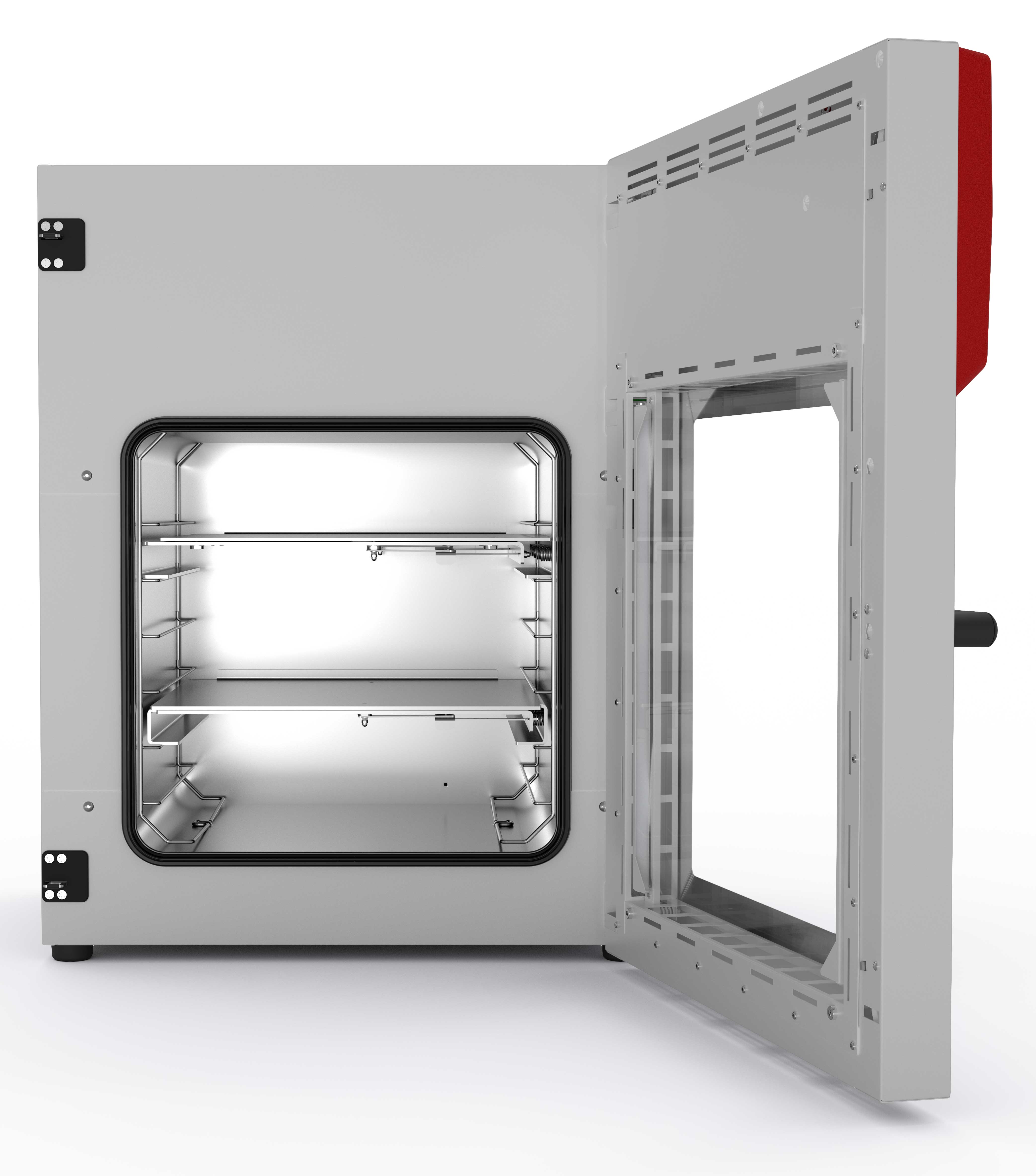

Binder VDL115 Vakuumtørreskab, FS, 119 liter

Varenr. BIN96300011

Benefits

  • Fast, gentle drying.
  • Optimum heat transfer through large thermal conducting plates.
  • Safe work thanks to proven safety concept.
  • Also option of modular complete system with vacuum pump and pump chamber.
Beskrivelse

BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.

Benefits

  • Fast, gentle drying
  • Optimum heat transfer through large thermal conducting plates
  • Safe working thanks to ATEX-compliant safety concept
  • Also option of modular complete system with vacuum pump and pump chamber

Important characteristics

  • Temperature range: Ambient temperature +9 °C to +110 °C
  • ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
  • Intuitive touchscreen controller with graphical pressure and temperature display
  • Program-controlled drying monitoring with automatic ventilation at end of process
  • Internal data logger, measured values can be read out in open format via USB
  • Pressure control device for heating activated from < 100 mbar
  • 2 aluminum expansion racks, can be custom-positioned
  • Universal connection for ventilation with ambient air or inert gas
  • DN 16 universal access port with small flange and blind flange, for positioning sensors or supply lines in the chamber
  • Shatterproof, spring-mounted safety glass panel
  • Large viewing window
  • Computer interface: Ethernet

Optional equipment

  • Expansion racks - Choice of aluminum or stainless steel racks depending on the application requirements
  • Analogue output for temperature and pressure signals - for external monitoring and evaluation of the process parameters, integration into in-house systems is possible
  • Universal ventilation - Selection of different ventilation by air or inert gas
  • Universal access port DN 40 - for the introduction of external measuring devices
  • Multi Management Software APT-COM - Manage, record and document device parameters
  • Services - extensive services ensure correct device function

Performance Data Temperature

DesignationVDL115-230VVDL115-120V
Temperature range+9 °C above ambient temperature to 110 °C+9 °C above ambient temperature to 110 °C
Temperature uniformity at 100°C2.9 ± K2.9 ± K
Temperature fluctuation at 100°C0.1 ± K0.1 ± K
Heating up time to 100°C170 min170 min

Vacuum Data

DesignationVDL115-230VVDL115-120V
Leckrate0,01 bar/h0,01 bar/h

Electrical data

DesignationVDL115-230VVDL115-120V
Rated Voltage200...230 V100...120 V
Power frequency50/60 Hz50/60 Hz
Nominal power1,6 kW1,6 kW
Unit fuse10,0 A20,0 A
Phase (Nominal voltage)1~1~

Connections

DesignationVDL115-230VVDL115-120V
Vacuum connection with small flange16 DN mm16 DN mm
Measuring access port with small flange16 DN mm16 DN mm

Measures

DesignationVDL115-230VVDL115-120V
Interior volume119 L119 L
Net weight of the unit (empty)158 kg158 kg
Load per rack20 kg20 kg
Permitted load70 kg70 kg
Wall clearance back100 mm100 mm
Wall clearance sidewise70 mm70 mm

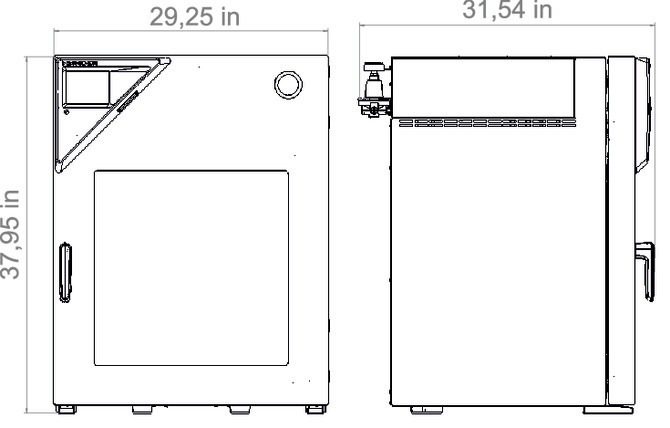

Housing dimensions not incl. fittings and connections

DesignationVDL115-230VVDL115-120V
Width net743 mm743 mm
Height net942 mm942 mm
Depth net581 mm581 mm

Internal Dimensions

DesignationVDL115-230VVDL115-120V
Interior width506 mm506 mm
Interior height506 mm506 mm
Interior depth460 mm460 mm
Viewing window width525 mm525 mm
Viewing window height468 mm468 mm
Unit doors11

Environment-specific data

DesignationVDL115-230VVDL115-120V
Sound-pressure level40 dB(A)40 dB(A)
Energy consumption at 100°C230 Wh/h230 Wh/h

Fixtures

DesignationVDL115-230VVDL115-120V
Number of shelves (std./max.)2/62/6
Specifikationer
Varenr. BIN96300011
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 9630-0011
CE-godkendt Ja
