IKA C-MAG HP 10

Varenr. IKA0003582000

Hotplate made of ceramic glass which offers excellent chemical resistance.

Beskrivelse

C-MAG HP 10

Hotplate made of ceramic glass which offers excellent chemical resistance.

  • Fixed safety circuit of 550 °C
  • Hot Top indicator >> hot surface warning to prevent burns!!
  • Exact temperature setting via digital display (LED)
  • Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
  • Digital error code display
  • Elevated control panel for protection against leaking liquids

Technical Data

Number of heating points1
Heat output1500 W
Heating temperature range50 - 500 °C
Heat controlTurning knob
Set temperature resolution±10 K
Connection for ext. temperature sensorETS-D5
Volume max.15 l
Heating rate heating plate5 K/min
Set-up plate materialceramic
Set-up plate dimensions260 x 260 mm
Dimensions (W x H x D)300 x 105 x 415 mm
Weight6 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage230 V
Frequency50/60 Hz
Power input1505 W
Specifikationer
Varenr. IKA0003582000
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0003582000
Vægt 6
CE-godkendt Ja
Filer

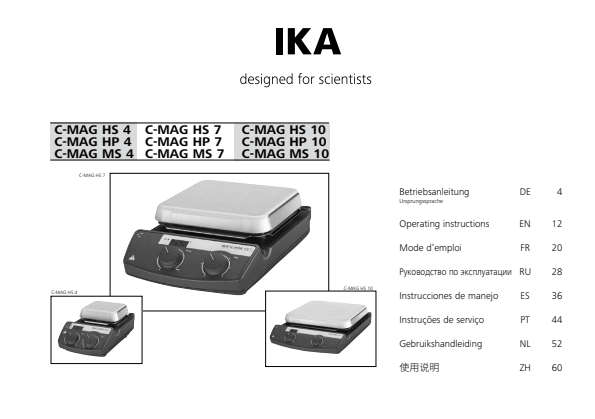

20000005327f 3582800 C MAG HS HP MS 072024 web
20000005327f 3582800 C MAG HS HP MS 072024 web
Vis Download

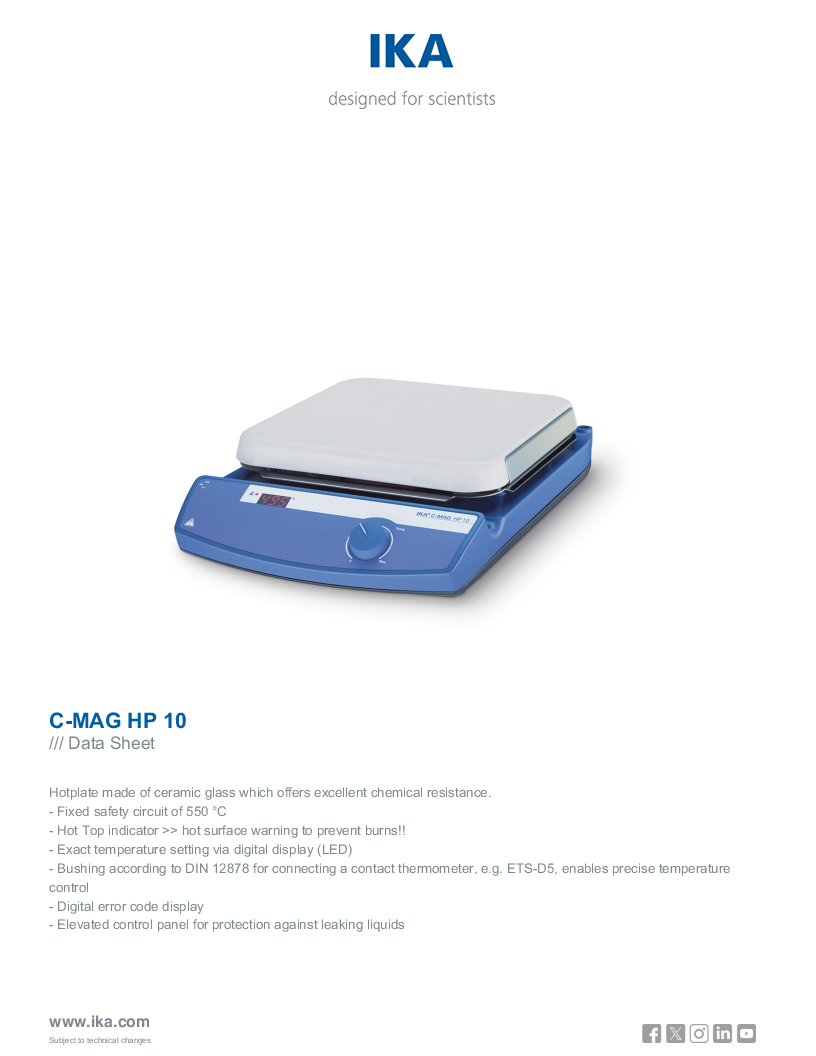

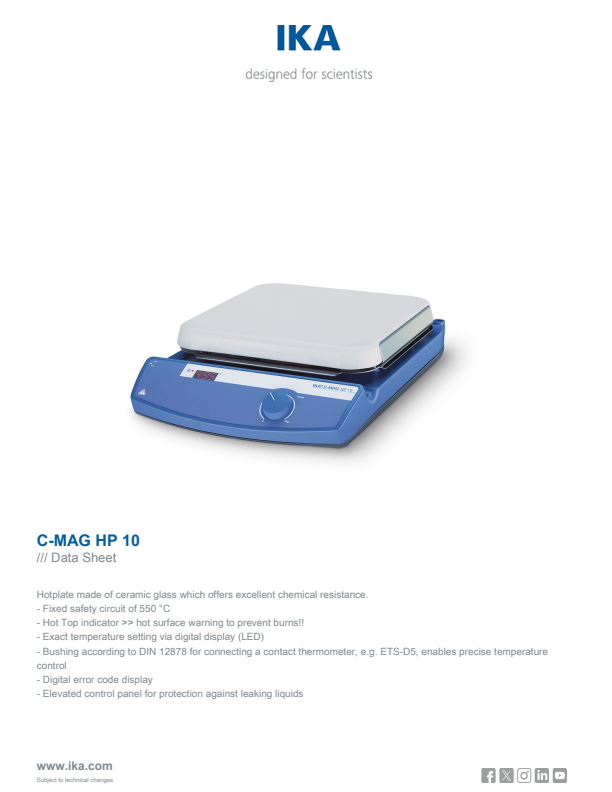

Data Sheet C MAG HP 10
Data Sheet C MAG HP 10
Vis Download
