IKA C-MAG HP 7

Varenr. IKA0003581800

Hotplate made of ceramic glass which offers excellent chemical resistance.

Beskrivelse

C-MAG HP 7

Hotplate made of ceramic glass which offers excellent chemical resistance.

  • Fixed safety circuit of 550 °C
  • Hot Top indicator >> hot surface warning to prevent burns!!
  • Exact temperature setting via digital display (LED)
  • Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
  • Digital error code display
  • Elevated control panel for protection against leaking liquids

Technical Data

Number of heating points1
Heat output1000 W
Heating temperature range50 - 500 °C
Heat controlTurning knob
Connection for ext. temperature sensorETS-D5
Volume max.10 l
Heating rate heating plate5 K/min
Set-up plate materialceramic
Set-up plate dimensions180 x 180 mm
Dimensions (W x H x D)220 x 105 x 330 mm
Weight4.4 kg
Permissible ambient temperature5 - 40 °C
Permissible relative humidity80 %
Protection class according to DIN EN 60529IP 21
Voltage230 V
Frequency50/60 Hz
Power input1005 W
Specifikationer
Varenr. IKA0003581800
Antal / pk 1
Enhed stk
Min. bestilling 1
Leverandørens varenummer 0003581800
Vægt 4,4
CE-godkendt Ja
Filer

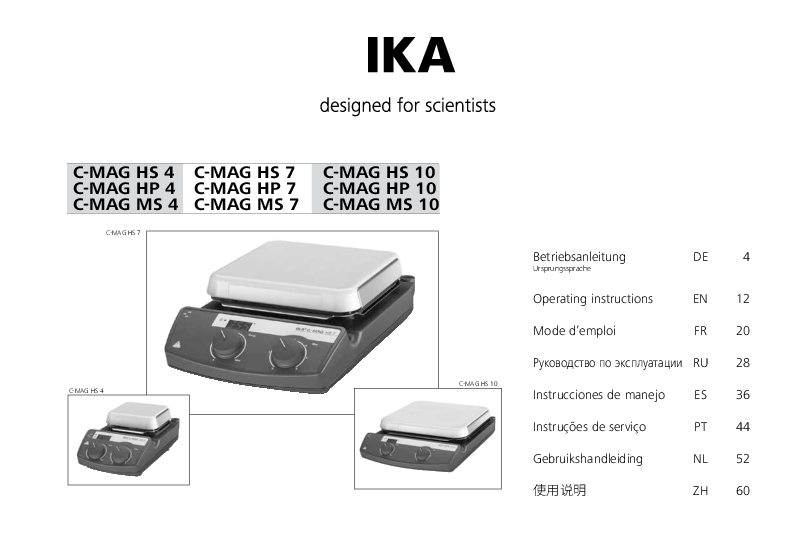

20000005327f 3582800 C MAG HS HP MS 072024 web
20000005327f 3582800 C MAG HS HP MS 072024 web
Vis Download

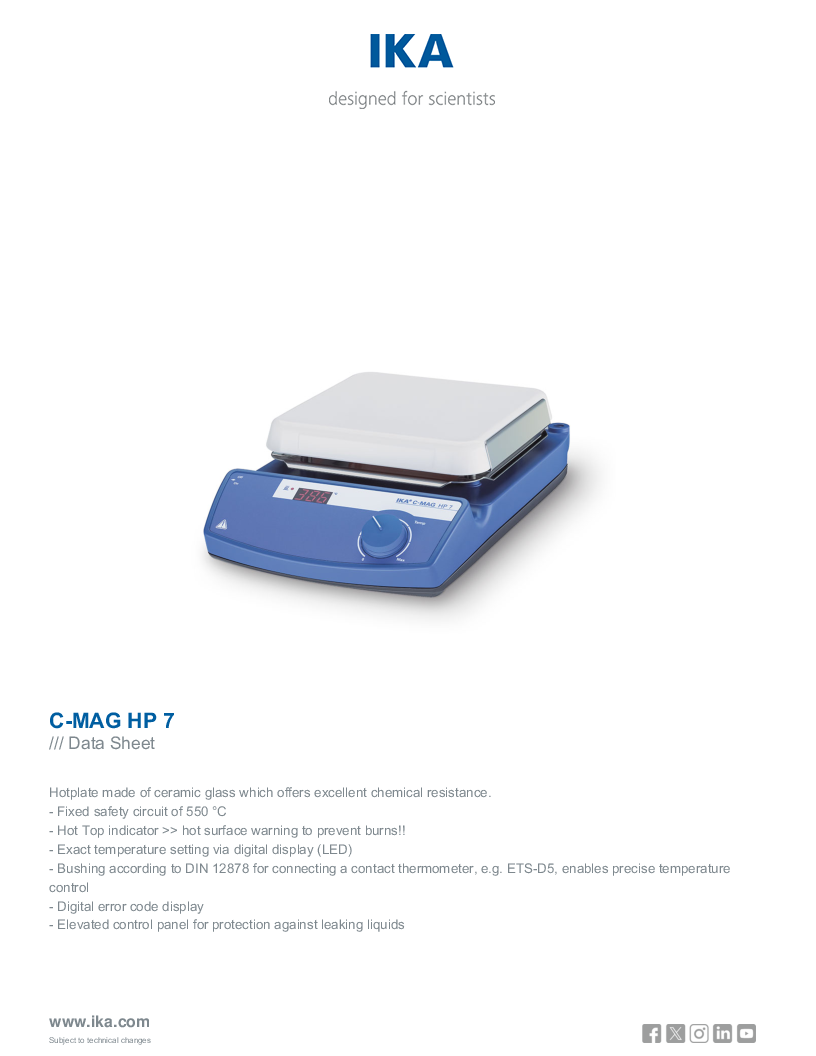

Data Sheet C MAG HP 7
Data Sheet C MAG HP 7
Vis Download
